PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for POE600F-12LB
- Part Number POE600F-12LB
- Manufacturer COILCRAFT
- Pin Count 12
- Part Category Transformer
- Package Category Other

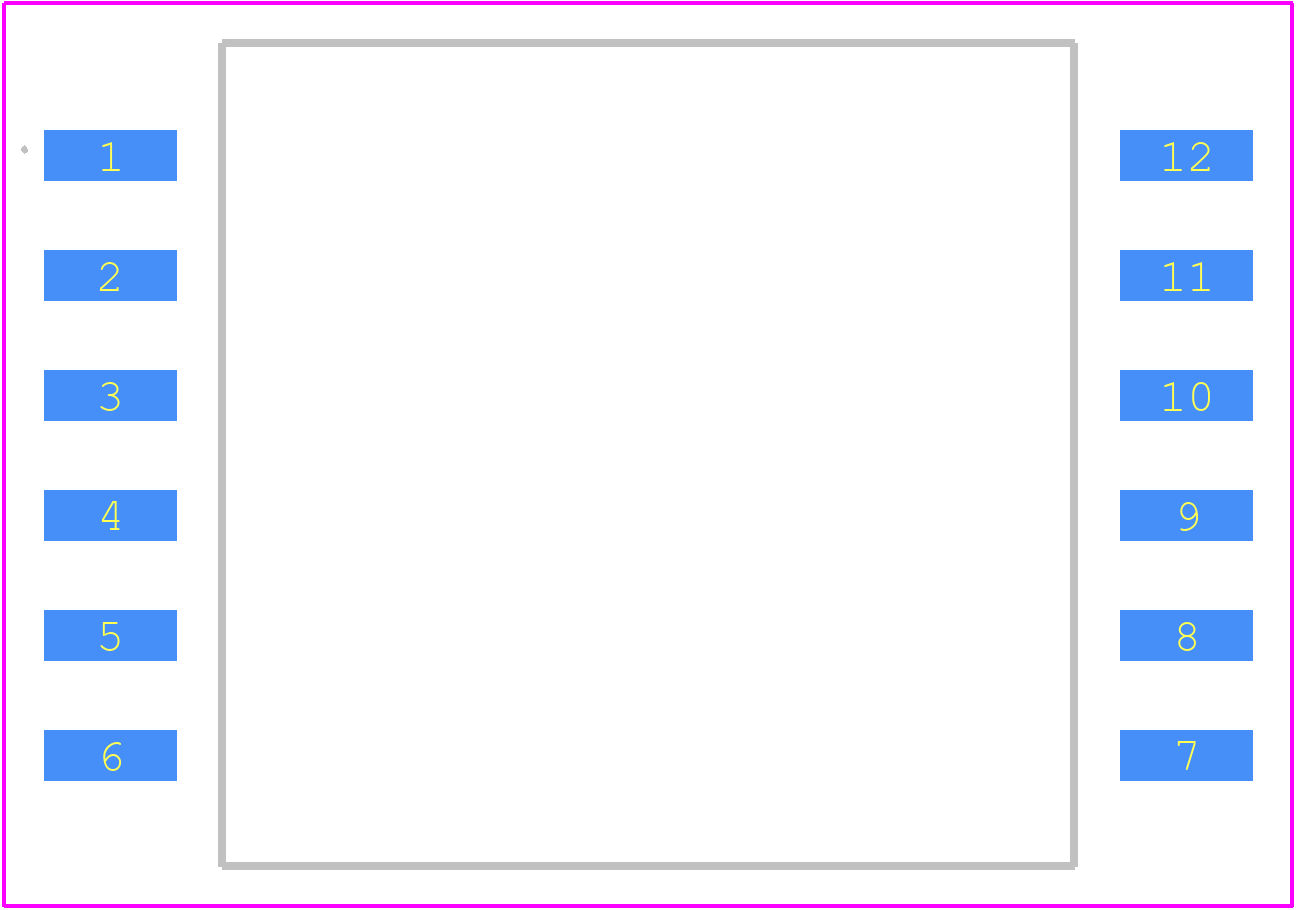

- Footprint Name Other - POE600F-12LB-1
- Released Date Dec 15, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
POE600F-12LB Details
-
Manufacturer Part Number:
POE600F-12LB
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
CHIP
-
ECCN Code:
EAR99
-
Manufacturer:
Coilcraft Inc
-
YTEOL:
0
-
Height:
11.43 mm
-
Input Voltage-Max:
72 V
-
Input Voltage-Min:
36 V
-
Length:
30 mm
POE600F-12LB Frequently Asked Questions (FAQs)
-
Coilcraft recommends a symmetrical PCB layout with a solid ground plane and a minimum of 0.5 mm clearance around the component to minimize electromagnetic interference and ensure optimal performance.
-
While the POE600F-12LB is rated for operation up to 125°C, it's recommended to derate the current rating by 1.5% per degree Celsius above 80°C to ensure reliable operation in high-temperature environments.
-
To ensure reliability in humid environments, Coilcraft recommends conformal coating the component and following proper storage and handling procedures to prevent moisture absorption.
-
Coilcraft recommends a soldering profile with a peak temperature of 260°C and a dwell time of 3-5 seconds to prevent damage to the component.
-
While the POE600F-12LB is designed to withstand moderate vibration, it's recommended to secure the component using a suitable adhesive or mechanical fastening to prevent movement and ensure reliable operation in high-vibration environments.
Trust Checks
Community Provided
System Verified
Community Approved
POE600F-12LB Overview

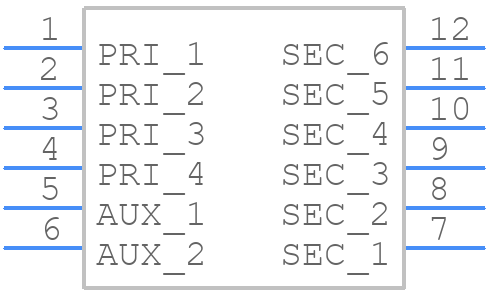

Use the download button to access the POE600F-12LB schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like POE60,
or try a keyword search, such as SMPS Transformers
