POE71F-24ED footprint, schematic symbol and 3D model by COILCRAFT

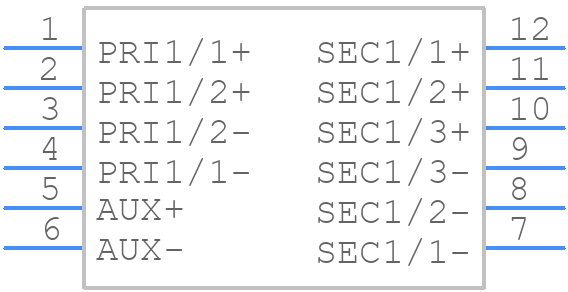

Symbol

click to zoom

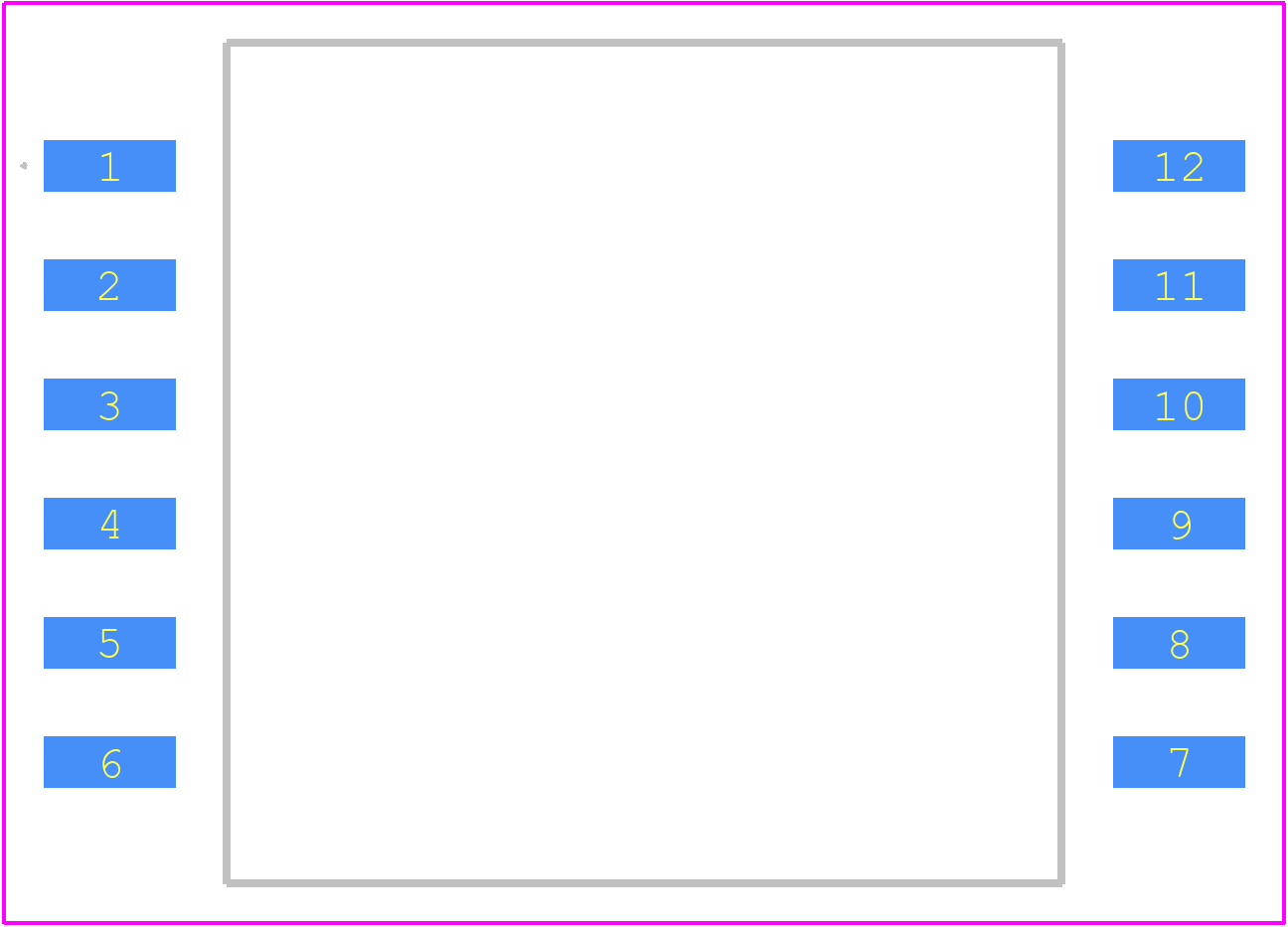

PCB Footprints

POE71F-24ED - COILCRAFT PCB footprint - Other - Other - POE71F-24ED-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for POE71F-24ED
Part Number POE71F-24ED
Manufacturer COILCRAFT
Pin Count 12
Part Category Transformer
Package Category Other
Footprint Name Other - POE71F-24ED-2
Released Date May 30, 2026
Last Modified Date Jun 1, 2026 11:01 AM UTC
Pinout / Pin List Click Here (Member Only)

POE71F-24ED Details

Manufacturer Part Number:
POE71F-24ED
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
6.82
Additional Feature:
FLYBACK TRANSFORMER
Height:
11.43 mm
Input Voltage-Max:
57 V
Input Voltage-Min:
36 V
JESD-609 Code:
e1
Length:
21.13 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
2
Number of Secondary Winding:
3
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
24 V
Packing Method:
TR, EMBOSSED PLASTIC, 13 INCH
Power Rating:
71 W
Primary Inductance:
15.5 µH
Surface Mount:
YES
Terminal Finish:
TIN SILVER COPPER
Transformer Type:
SMPS TRANSFORMER
Width:
21 mm

POE71F-24ED Frequently Asked Questions (FAQs)

Coilcraft recommends a symmetrical PCB layout with a solid ground plane and a minimum of 0.5 mm clearance around the component to ensure optimal performance and minimize electromagnetic interference (EMI).
Coilcraft recommends using a soldering iron with a temperature of 260°C to 280°C and a solder with a melting point of 180°C to 220°C. The component should be soldered within 3 seconds to 5 seconds, and the solder joints should be inspected for quality and cleanliness.
The maximum operating temperature range for POE71F-24ED is -40°C to 125°C, with a derating of 1.25% per degree Celsius above 80°C.
Yes, POE71F-24ED is designed to withstand high-vibration environments. However, it's recommended to follow the recommended PCB layout and mounting guidelines to ensure reliable performance.
Coilcraft recommends handling POE71F-24ED with ESD-protective equipment, such as wrist straps or mats, and storing the components in ESD-protective packaging to prevent damage from electrostatic discharge.

Trust Checks

Community Provided

System Verified

Community Approved

POE71F-24ED Overview

Use the download button to access the POE71F-24ED schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like POE71, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
