POS-308-S001-95 - E-TEC

Description: E-TEC 2.54mm Pitch Vertical 8 Way, Through Hole Turned pin Open Frame IC Dip Socket

Download POS-308-S001-95 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

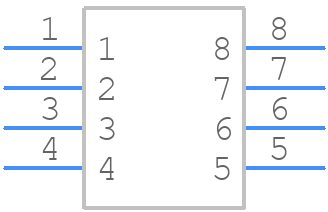

POS-308-S001-95 - E-TEC - PCB symbol
click to zoom
PCB Footprints

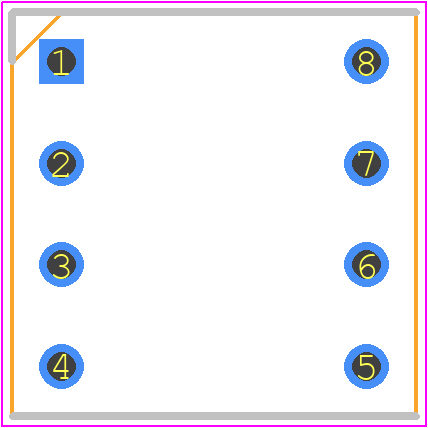

POS-308-S001-95 - E-TEC PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - POS-308-S001-95
click to zoom

POS-308-S001-95 Details

  • Manufacturer Part Number:

    POS-308-S001-95

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    E-tec Interconnect Ltd

  • Additional Feature:

    ROHS COMPLIANT

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    RND PIN-SKT

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP8

  • Housing Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    8

  • Termination Type:

    SOLDER

POS-308-S001-95 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.8 Nm (5-8 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
  • Yes, the POS-308-S001-95 is designed to withstand vibrations and can be used in high-vibration applications. However, it's recommended to follow the manufacturer's guidelines for vibration testing and ensure proper mounting and securing of the connector.
  • The POS-308-S001-95 has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to ensure proper sealing and protection of the connector when used in outdoor applications to maintain its IP67 rating.
  • The POS-308-S001-95 has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the POS-308-S001-95 is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, it's recommended to consult with the manufacturer or a qualified engineer to ensure that the connector can accommodate the desired wire size and meet the required performance and safety standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

POS-308-S001-95 Overview

Use the download button to access the POS-308-S001-95 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like POS-3, or try a keyword search, such as Sockets and Chip Carriers
