PPD1R5-5-1515 - TDK

Description: TDK-Lambda 1.5W Isolated DC-DC Converter Through Hole, Vin 4.7 → 7.2 V dc, Vout ±15V dc, I/O isolation 500V ac

Download PPD1R5-5-1515 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PPD1R5-5-1515 - TDK - PCB symbol
click to zoom

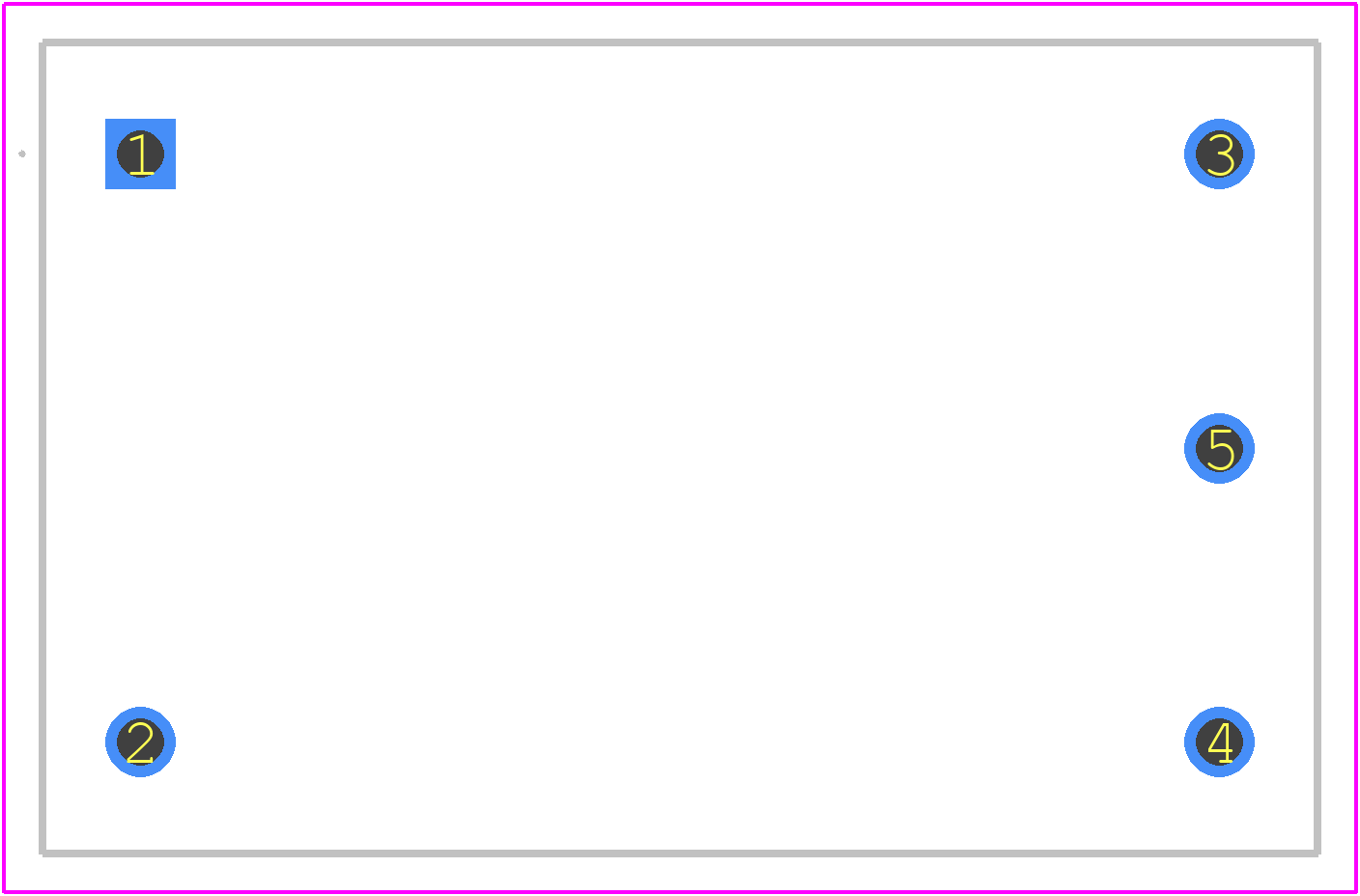

PCB Footprints
PPD1R5-5-1515 - TDK PCB footprint - Other - Other - PPD1R5-5-1515-1
click to zoom
3D Models
PPD1R5-5-1515 - TDK - 3D model - Other - PPD1R5-5-1515-1
click to zoom

PPD1R5-5-1515 Details

  • Manufacturer Part Number:

    PPD1R5-5-1515

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ,

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

PPD1R5-5-1515 Frequently Asked Questions (FAQs)

  • TDK-Lambda recommends a PCB layout with a solid copper ground plane and thermal vias to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • Yes, the PPD1R5-5-1515 is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in high-vibration environments.
  • The maximum allowable capacitance for the output filter is 100uF. Exceeding this value may affect the stability of the power module.
  • Yes, the PPD1R5-5-1515 can be used in a redundant configuration, but it's essential to ensure that the modules are synchronized and properly configured to avoid any potential issues.
  • TDK-Lambda recommends a fuse rating of 5A or slower blow type to ensure reliable operation and protection of the power module.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PPD1R5-5-1515 Overview

Use the download button to access the PPD1R5-5-1515 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PPD1R, or try a keyword search, such as Power Supply Modules

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
