PPPC321LFBN-RC - Sullins

Description: CONN HDR 32POS 0.1 GOLD PCB

Download PPPC321LFBN-RC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

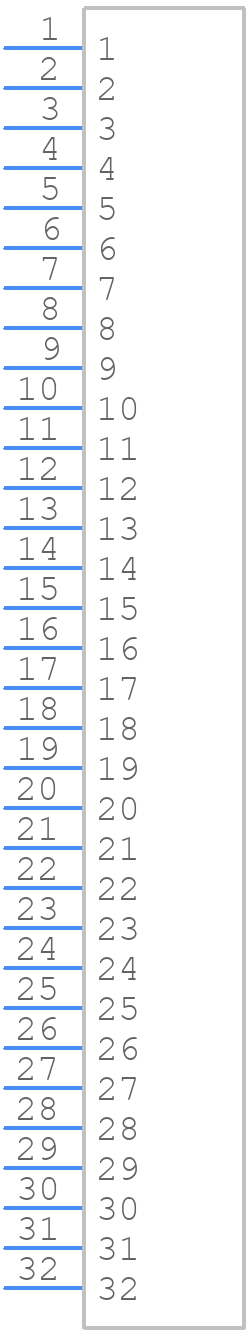

PPPC321LFBN-RC - Sullins - PCB symbol
click to zoom
PCB Footprints

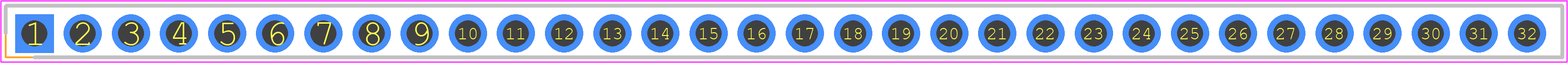

PPPC321LFBN-RC - Sullins PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - PPPC321LFBN-RC
click to zoom
3D Models
PPPC321LFBN-RC - Sullins - 3D model - Header, Receptacle - Straight PTH Box - PPPC321LFBN-RC
click to zoom

PPPC321LFBN-RC Details

  • Manufacturer Part Number:

    PPPC321LFBN-RC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    9.1

  • Body Breadth:

    0.094 inch

  • Body Depth:

    0.334 inch

  • Body Length:

    3.22 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • Filter Feature:

    NO

  • Insulator Material:

    POLYESTER

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    FLASH inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    32

PPPC321LFBN-RC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the PPPC321LFBN-RC is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The PPPC321LFBN-RC has a rating of IP67, which means it can withstand temporary immersion in water (up to 1m for 30 minutes) and is protected against dust ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating.
  • The PPPC321LFBN-RC has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • While the datasheet specifies 20-24 AWG wire sizes, it's possible to use other wire sizes with the PPPC321LFBN-RC. However, it's crucial to consult with Sullins Connector Solutions or a qualified engineer to ensure the connector's performance and reliability are not compromised.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PPPC321LFBN-RC Overview

Use the download button to access the PPPC321LFBN-RC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PPPC3, or try a keyword search, such as Headers and Edge Type Connectors
