PRM48AF480T400A00 - VICOR

Description: Module DC-DC 48VIN 1-OUT 20V to 55V 8.33A 400W 56-Pin Full-Chip

Download PRM48AF480T400A00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

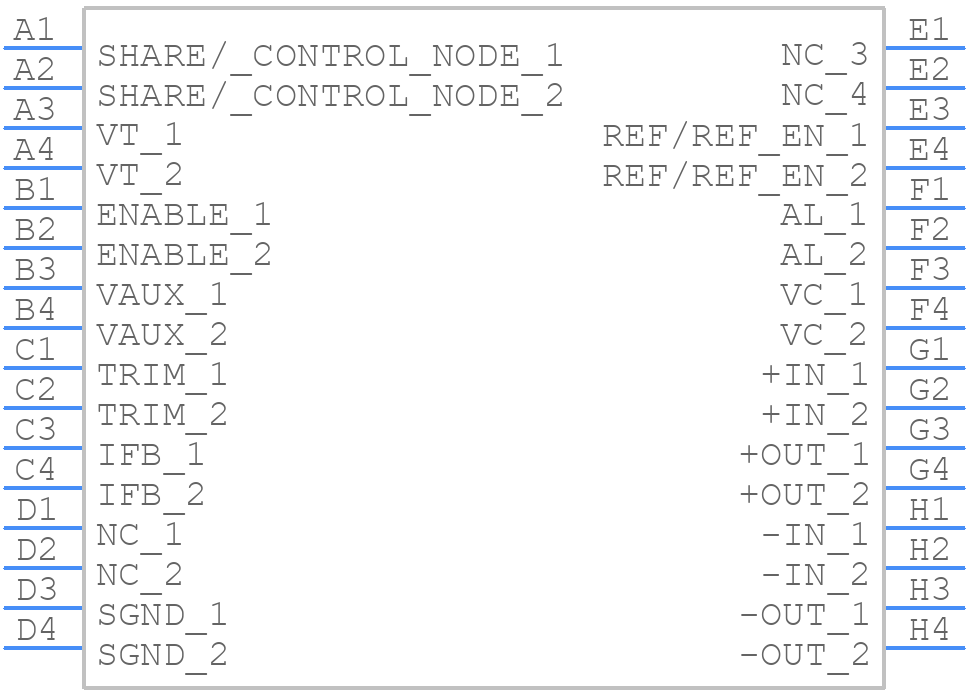

Symbol
PRM48AF480T400A00 - VICOR - PCB symbol
click to zoom

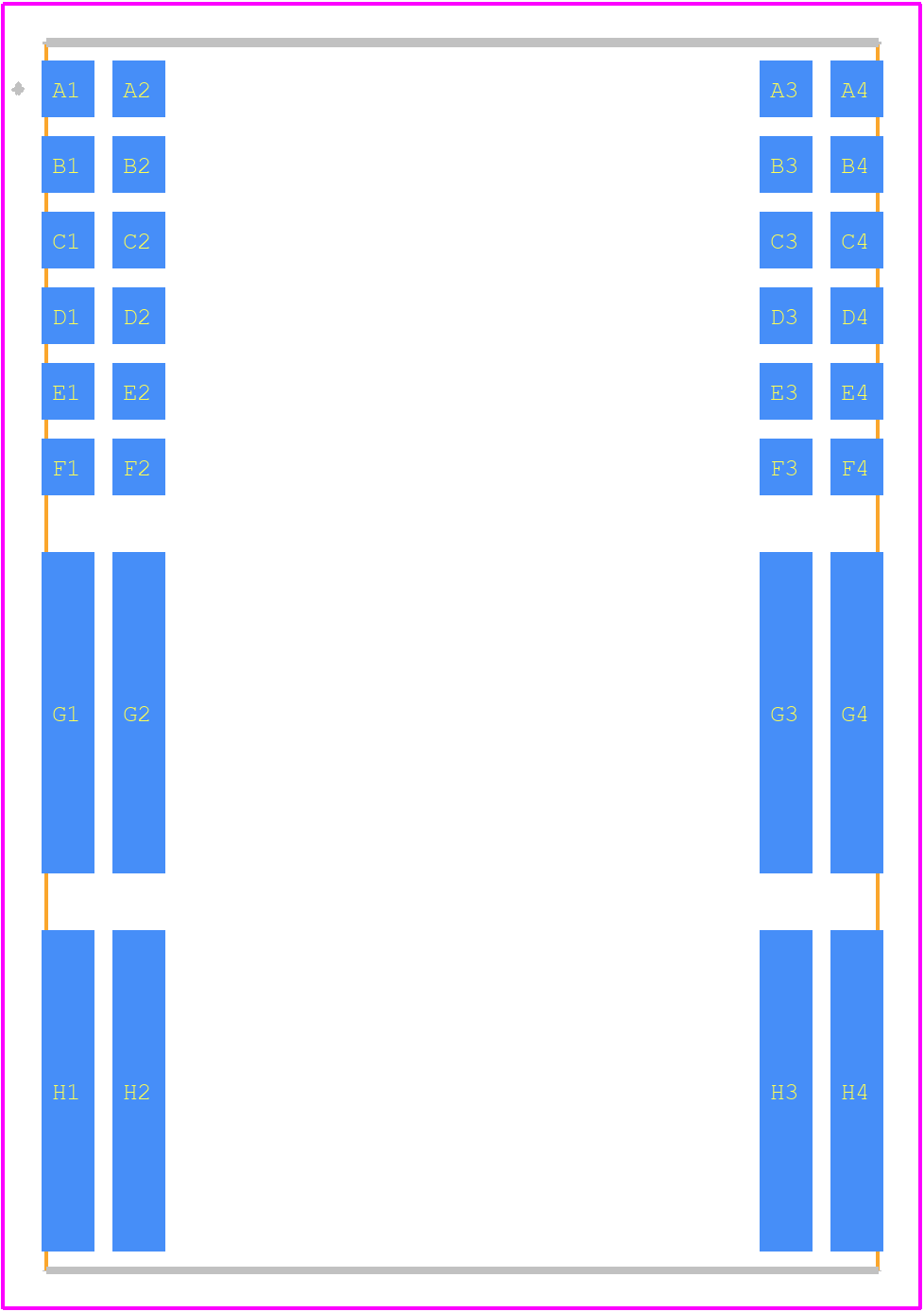

PCB Footprints
PRM48AF480T400A00 - VICOR PCB footprint - Other - Other - PRM48AF480T400A00-1
click to zoom
3D Models
PRM48AF480T400A00 - VICOR - 3D model - Other - PRM48AF480T400A00-1
click to zoom

PRM48AF480T400A00 Details

  • Manufacturer Part Number:

    PRM48AF480T400A00

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XXMA-X

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Output Current-Max:

    8.33 A

  • Output Voltage-Max:

    55 V

  • Output Voltage-Min:

    20 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Equivalence Code:

    MODULE(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    245

  • Surface Mount:

    NO

  • Switcher Configuration:

    BUCK-BOOST

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UNSPECIFIED

PRM48AF480T400A00 Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A thermal interface material (TIM) should be used between the module and the heat sink.
  • To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a controlled shutdown sequence to prevent voltage spikes.
  • The PRM48AF480T400A00 is designed to operate within a specific input voltage range (36-75V). Operating outside this range may affect efficiency, output voltage regulation, and reliability.
  • Vicor recommends using a scope to monitor input and output voltages, and checking for proper pin connections and thermal management. Consult the datasheet and application notes for troubleshooting guides.
  • The PRM48AF480T400A00 is designed to meet CISPR 22 and FCC Part 15 Class B emissions standards. Proper PCB layout, shielding, and filtering may be necessary to ensure compliance in specific applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PRM48AF480T400A00 Overview

Use the download button to access the PRM48AF480T400A00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PRM48, or try a keyword search, such as Switching Regulator or Controllers
