The recommended PCB layout involves placing the PRM48AH480T200A00 near a heat sink or a metal plate to dissipate heat. A thermal interface material (TIM) should be used to fill the gap between the module and the heat sink. The PCB should have a solid ground plane and a separate power plane to minimize noise and EMI.
To ensure reliable start-up and shutdown, it is recommended to use a soft-start circuit to limit the inrush current during power-up. A slow-rising input voltage (e.g., 10-20 ms) can help prevent excessive inrush current. During shutdown, a gradual decrease in input voltage can help prevent voltage spikes and ensure a clean shutdown.
At high altitudes, the air pressure is lower, which can affect the cooling performance of the module. The PRM48AH480T200A00 is designed to operate up to 5,000 meters (16,400 ft) above sea level. However, derating may be necessary to ensure reliable operation. Consult with Vicor Corporation for specific guidance on high-altitude operation.
Yes, the PRM48AH480T200A00 can be used in a redundant or parallel configuration to achieve higher power or redundancy. However, it is essential to ensure that the modules are properly synchronized and that the system is designed to handle the increased power and thermal requirements.
The PRM48AH480T200A00 is designed to meet CISPR 22 and FCC Part 15 Class B EMI standards. However, proper PCB layout, grounding, and shielding are still necessary to minimize EMI and RFI. It is recommended to use a metal enclosure and to follow good EMI design practices to ensure compliance with regulatory requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PRM48AH480T200A00 Overview

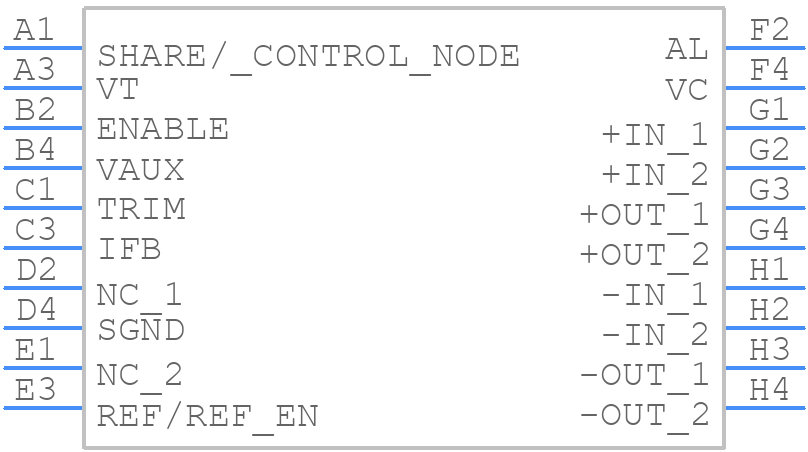

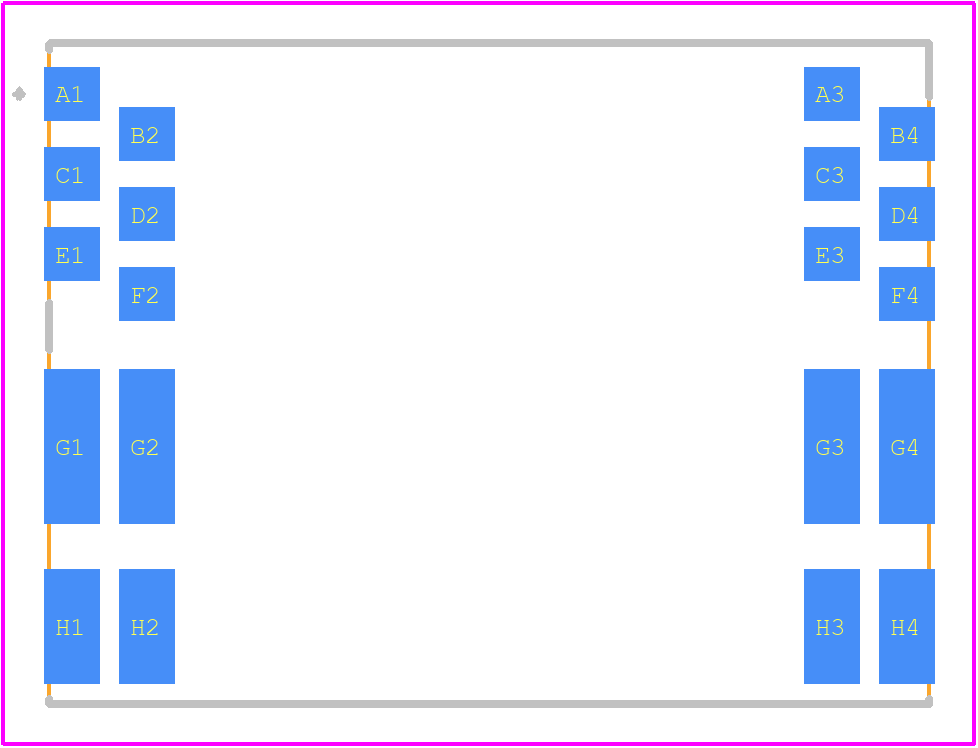

Use the download button to access the PRM48AH480T200A00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PRM48,
or try a keyword search, such as Switching Regulator or Controllers
