PRM48AT480T400A00 - VICOR

Description: Switching Voltage Regulators PRM2A FULL WIDE 400W

Download PRM48AT480T400A00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PRM48AT480T400A00 - VICOR - PCB symbol
click to zoom

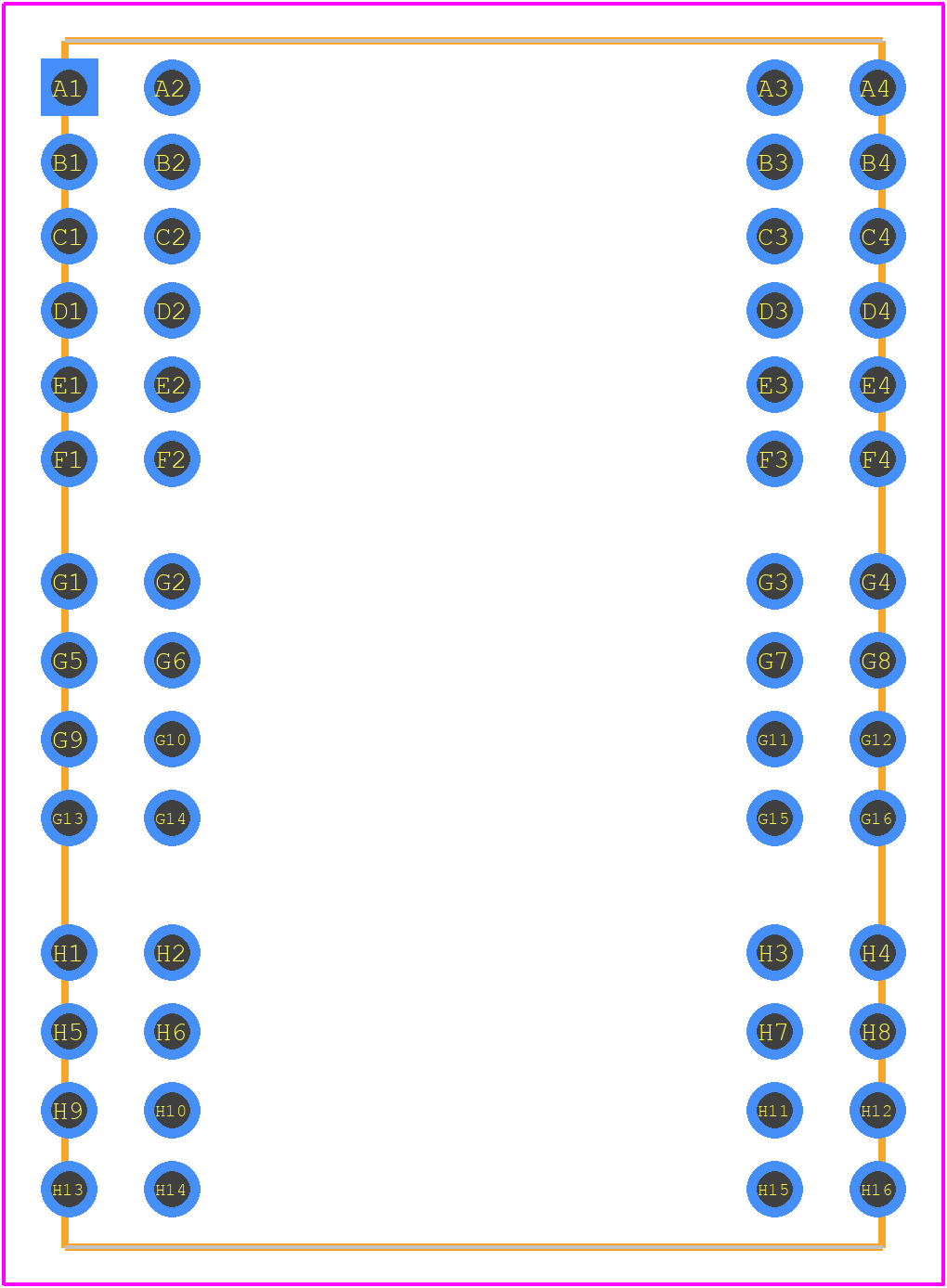

PCB Footprints
PRM48AT480T400A00 - VICOR PCB footprint - Other - Other - PRM48AT480T400A00-1
click to zoom
3D Models
PRM48AT480T400A00 - VICOR - 3D model - Other - PRM48AT480T400A00-1
click to zoom

PRM48AT480T400A00 Details

  • Manufacturer Part Number:

    PRM48AT480T400A00

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-32

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Vicor Corporation

  • YTEOL:

    7.3

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    75 V

  • Input Voltage-Min:

    36 V

  • Input Voltage-Nom:

    48 V

  • JESD-30 Code:

    R-XDMA-T32

  • JESD-609 Code:

    e4

  • Length:

    32.5 mm

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    55 V

  • Output Voltage-Min:

    20 V

  • Output Voltage-Nom:

    48 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    6.98 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    400 W

  • Trim/Adjustable Output:

    YES

  • Width:

    22 mm

PRM48AT480T400A00 Frequently Asked Questions (FAQs)

  • Vicor recommends a 4-layer PCB with a solid ground plane, and thermal vias under the module to dissipate heat. A thermal interface material (TIM) should be used between the module and the heat sink.
  • To ensure reliable start-up and shutdown, Vicor recommends a soft-start circuit to limit inrush current, and a controlled shutdown sequence to prevent voltage spikes.
  • The PRM48AT480T400A00 is designed to operate within a specific input voltage range (36-75V). Operating outside this range may affect efficiency, output voltage regulation, and reliability.
  • Vicor recommends using a scope to monitor input and output voltages, and checking for proper pin connections and thermal management. Consult the datasheet and application notes for troubleshooting guides.
  • The PRM48AT480T400A00 is designed to meet CISPR 22 and FCC Part 15 Class B emissions standards. Proper PCB layout, shielding, and filtering may be required to meet specific application requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PRM48AT480T400A00 Overview

Use the download button to access the PRM48AT480T400A00 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PRM48, or try a keyword search, such as Power Supply Modules
