PRS11R-415F-N103B1 - Bourns

Description: 10k Ohm 1 Gang Linear Through Hole Potentiometer None 1.0 Kierros 0.05W, 1/20W PC Pins

Download PRS11R-415F-N103B1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PRS11R-415F-N103B1 - Bourns - PCB symbol
click to zoom
PCB Footprints

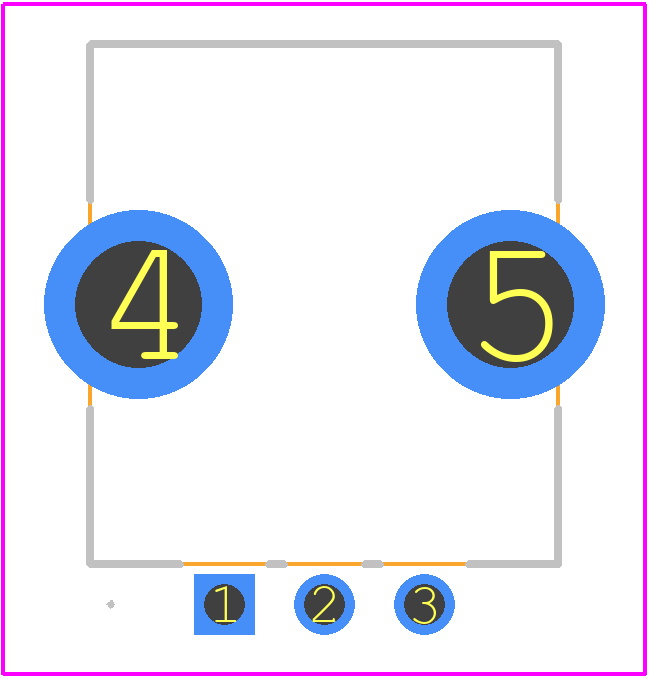

PRS11R-415F-N103B1 - Bourns PCB footprint - Other - Other - PRS11R-415F-N103B1-4
click to zoom
3D Models
PRS11R-415F-N103B1 - Bourns - 3D model - Other - PRS11R-415F-N103B1-4
click to zoom

PRS11R-415F-N103B1 Details

  • Manufacturer Part Number:

    PRS11R-415F-N103B1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.80.70

  • Manufacturer:

    Bourns Inc

  • YTEOL:

    6.65

  • Actuator Orientation:

    VERTICAL

  • Actuator Type:

    SHAFT

  • Additional Feature:

    RATED AC VOLTAGE (V): 50

  • Construction:

    Rectangular

  • Ganging Number:

    1

  • Lead Length:

    4.4 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Number of Turns:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Height:

    5.7 mm

  • Package Length:

    13 mm

  • Package Style:

    Radial

  • Package Width:

    11.7 mm

  • Rated Power Dissipation (P):

    0.05 W

  • Resistance:

    10000 Ω

  • Resistance Law:

    LINEAR

  • Resistor Type:

    POTENTIOMETER

  • Rotational Angle:

    300 deg

  • Surface Mount:

    NO

  • Technology:

    CARBON

  • Terminal Shape:

    FLAT

  • Tolerance:

    20%

  • Working Voltage:

    30 V

PRS11R-415F-N103B1 Frequently Asked Questions (FAQs)

  • Bourns recommends a symmetrical PCB layout with a solid ground plane and a minimum of 1 oz copper thickness to minimize thermal resistance and ensure optimal performance.
  • Yes, the PRS11R-415F-N103B1 is designed to withstand high-vibration environments, but it's recommended to follow Bourns' guidelines for vibration testing and to ensure proper mounting and soldering to prevent mechanical stress.
  • To ensure reliability in high-temperature applications, it's recommended to follow Bourns' derating guidelines, ensure proper thermal management, and consider using a thermally conductive interface material to minimize thermal resistance.
  • The PRS11R-415F-N103B1 is not designed for use in humid or wet environments. If exposure to moisture is unavoidable, it's recommended to use a conformal coating or potting compound to protect the device from moisture ingress.
  • Bourns recommends a soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 10-30 seconds to ensure reliable solder joints and minimize thermal stress.
