PRS11S-N20F-103B1 footprint, schematic symbol and 3D model by Bourns

Symbol

click to zoom

PCB Footprints

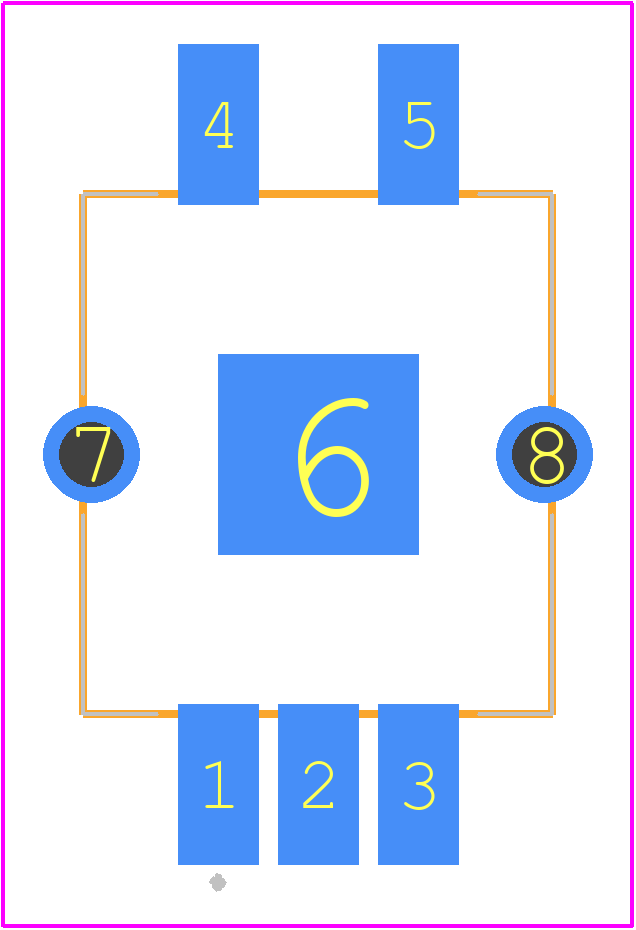

PRS11S-N20F-103B1 - Bourns PCB footprint - Other - Other - PRS11S-N20F-503B1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PRS11S-N20F-103B1
Part Number PRS11S-N20F-103B1
Manufacturer Bourns
Pin Count 5
Part Category Variable Resistor
Package Category Other
Footprint Name Other - PRS11S-N20F-503B1
Released Date Sep 26, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

PRS11S-N20F-103B1 Details

Manufacturer Part Number:
PRS11S-N20F-103B1
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
RECTANGULAR, 5 PIN, ROHS COMPLIANT
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8533.40.80.70
Manufacturer:
Bourns Inc
YTEOL:
0
Actuator Orientation:
VERTICAL
Actuator Type:
SHAFT
Additional Feature:
RATED AC VOLTAGE (V): 50
Construction:
Rectangular
Ganging Number:
1
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
5
Number of Turns:
1
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-10 °C
Package Height:
7.2 mm
Package Length:
13 mm
Package Shape:
RECTANGULAR PACKAGE
Package Style:
SMT
Package Width:
11.7 mm
Packing Method:
TUBE
Rated Power Dissipation (P):
0.05 W
Resistance:
10000 Ω
Resistance Law:
LINEAR
Resistor Type:
POTENTIOMETER
Rotational Angle:
300 deg
Size Code:
5146
Surface Mount:
YES
Technology:
CARBON
Terminal Shape:
GULL WING
Tolerance:
20%
Working Voltage:
30 V

PRS11S-N20F-103B1 Frequently Asked Questions (FAQs)

A symmetrical layout with a central grounding point and minimal track lengths is recommended to minimize electromagnetic interference (EMI) and ensure optimal performance.
Ensure proper thermal management by providing adequate heat sinking and airflow, and consider derating the component's power rating according to the manufacturer's guidelines.
The maximum allowable voltage transient is typically 1.5 times the rated voltage, but it's recommended to consult the manufacturer's application notes for specific guidance.
Yes, but be aware that the component's impedance and parasitic effects may impact performance at high frequencies. Consult the manufacturer's high-frequency models and application notes for guidance.
Use a systematic approach to troubleshoot, checking for proper component orientation, soldering, and PCB layout. Consult the manufacturer's troubleshooting guides and application notes for specific guidance.

Trust Checks

Expert Contribution

System Verified

Community Approved

PRS11S-N20F-103B1 Overview

Use the download button to access the PRS11S-N20F-103B1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PRS11, or try a keyword search, such as Variable Resistors

Parts related to PRS11S-N20F-103B1

Showing 0 results
