A good PCB layout for the PS2501-4 involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 10uF capacitor between the VCC and GND pins to filter out noise.
To ensure proper biasing, connect the VCC pin to a stable voltage source (e.g., 5V or 3.3V) and the GND pin to a solid ground plane. Also, make sure the input signal is within the recommended voltage range (0.5V to 2.5V) and the output is properly terminated.
The PS2501-4 can operate up to 100 MHz, but the actual frequency limit depends on the specific application, PCB layout, and signal quality. It's recommended to consult the datasheet and application notes for more information.
To prevent ESD damage, handle the PS2501-4 by the body or pins, avoid touching the pins, and use an anti-static wrist strap or mat. Also, ensure the PCB is designed with ESD protection in mind, such as using ESD-protection diodes or resistors.
The PS2501-4 has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device within the recommended operating temperature range (0°C to 70°C) and provide adequate heat dissipation through a heat sink or thermal pad.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS2501-4 Overview

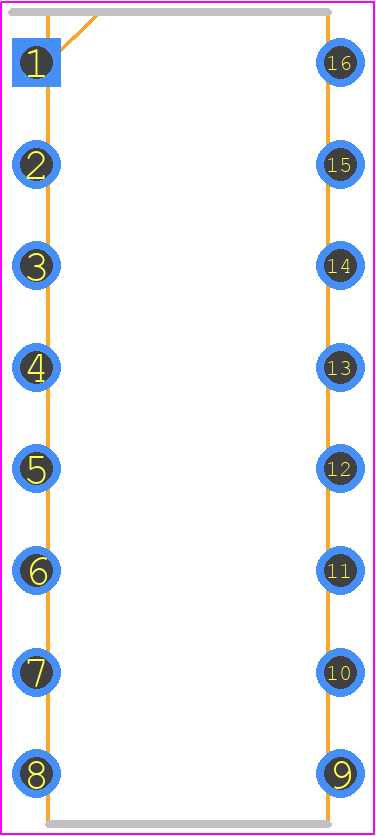

Use the download button to access the PS2501-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS250,
or try a keyword search, such as Optocoupler
