PS2501L-1-F3-A footprint, schematic symbol and 3D model by Renesas Electronics

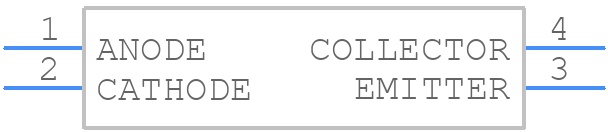

Symbol

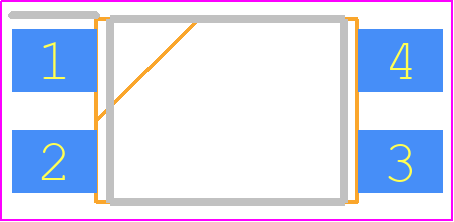

PCB Footprints

3D Models

PS2501L-1-F3-A Details

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and crosstalk.
Use a high-quality, low-ESR capacitor (e.g., 10uF ceramic) as close as possible to the VCC pin. Add a 1uF capacitor in parallel to filter high-frequency noise. Ensure the power supply can provide the required current.
Use a low-pass filter (e.g., RC filter) to remove high-frequency noise from the input signal. Ensure the input signal is within the recommended voltage range (0.5V to 5.5V) and has a slew rate of 10mV/us or slower.
Check the power supply voltage, input signal integrity, and PCB layout. Verify the device is properly soldered and there are no shorts or opens. Use an oscilloscope to inspect the input and output signals. Consult the datasheet and application notes for guidance.
The PS2501L-1-F3-A is rated for operation up to 85°C. For higher temperatures, consider using a heat sink or a thermally-enhanced package. Ensure the device is properly derated for temperature and follow the recommended thermal design guidelines.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the PS2501L-1-F3-A schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PS250, or try a keyword search, such as Optocoupler
