PS2532-4 - CEL

Description: OPTOISO 5KV 4CH DARLINGTON 16DIP

Download PS2532-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

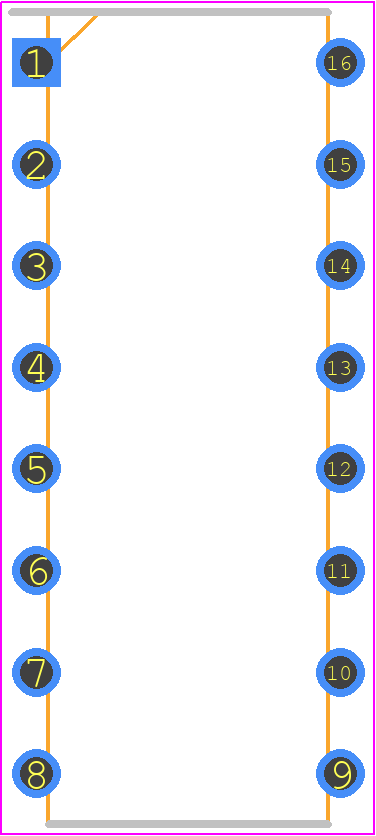

PS2532-4 - CEL PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PS2502-4
click to zoom
3D Models
PS2532-4 - CEL  - 3D model - Dual-In-Line Packages - PS2502-4
click to zoom

PS2532-4 Details

  • Manufacturer Part Number:

    PS2532-4

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    PLASTIC, DIP-16

  • HTS Code:

    8541.40.80.00

  • Manufacturer:

    California Eastern Laboratories (CEL)

  • YTEOL:

    0

  • Coll-Emtr Bkdn Voltage-Min:

    300 V

  • Configuration:

    SEPARATE, 4 CHANNELS WITH BUILT-IN DIODE AND RESISTOR

  • Current Transfer Ratio-Nom:

    4000%

  • Dark Current-Max:

    400 nA

  • Forward Current-Max:

    0.08 A

  • Isolation Voltage-Max:

    5000 V

  • Number of Elements:

    4

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER

PS2532-4 Frequently Asked Questions (FAQs)

  • A good PCB layout for the PS2532-4 involves keeping the input and output traces separate, using a ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, the PS2532-4 requires a bias voltage of 5V to 15V on the VCC pin, and a bias current of 1mA to 10mA. The bias voltage should be decoupled with a 10uF capacitor to reduce noise and ensure stable operation.
  • The maximum power dissipation of the PS2532-4 is 1.5W. It's essential to ensure that the device is properly heat-sinked and that the ambient temperature is within the recommended operating range to prevent overheating.
  • Yes, the PS2532-4 can be used in a switching power supply application. However, it's essential to ensure that the device is properly biased and that the input and output capacitors are selected to minimize ringing and overshoot.
  • To troubleshoot common issues with the PS2532-4, start by checking the PCB layout and ensuring that the device is properly biased. Verify that the input and output capacitors are properly selected and that the power supply is stable. Use an oscilloscope to check for oscillation or instability, and consult the datasheet and application notes for guidance on troubleshooting and optimization.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PS2532-4 Overview

Use the download button to access the PS2532-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS253, or try a keyword search, such as Optocoupler

Parts related to PS2532-4

Showing 0 results

PS2532-4 Alternates

Showing results

Image Part Number Model
Part Image PS2532-4 NEC Compound Semiconductor Devices Ltd

Darlington Output Optocoupler, 4-Element, 5000V Isolation

Part Image PS2532-4 NEC Electronics America Inc

Darlington Output Optocoupler, 4-Element, 5000V Isolation, PLASTIC, DIP-16

Part Image PS2532-4 NEC Electronics Group

Darlington Output Optocoupler, 4-Element, 5000V Isolation
