Description:The PS2535-1 and PS2535L-1 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington connected phototransistor. A high withstanding voltage between the I/O, the high voltage between the collector and emitter of the transistor, and darlington transistor output enables low-current input. The PS2535-1 is in a plastic DIP (Dual In-line Package) and the PS2535L-1 is lead bending type (Gull-wing) for surface mount.
A good PCB layout is crucial for the PS2535L-1-V-A. Renesas recommends a 4-layer PCB with a solid ground plane, and the IC should be placed near the center of the board. The input and output traces should be kept short and away from each other to minimize noise and coupling. Additionally, a 10nF capacitor should be placed between the VCC and GND pins to filter out noise.
To ensure reliable operation over the entire temperature range (-40°C to 85°C), it's essential to follow proper thermal management practices. This includes providing adequate heat dissipation, using a thermally conductive material for the PCB, and avoiding thermal hotspots. Additionally, the device should be operated within the recommended voltage and current ranges, and the input voltage should be well-regulated.
While the PS2535L-1-V-A can operate with input voltages between 4.5V and 5.5V, using a different input voltage than the recommended 5V may affect the device's performance and reliability. For example, a lower input voltage may reduce the output current capability, while a higher input voltage may increase power consumption and heat generation. It's essential to consult the datasheet and perform thorough testing to ensure the device meets the required specifications.
To troubleshoot issues with the PS2535L-1-V-A, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to check for noise and oscillations on the input and output lines. If the issue persists, consult the datasheet and application notes, and consider contacting Renesas support for further assistance.
Yes, the PS2535L-1-V-A is a high-frequency device, and proper EMI/EMC design practices are essential to ensure reliable operation. This includes using a shielded enclosure, keeping the input and output traces short and away from each other, and using EMI filters or common-mode chokes to reduce emissions. Additionally, the device should be placed away from other noise-sensitive components, and the PCB should be designed to minimize radiation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS2535L-1-V-A Overview

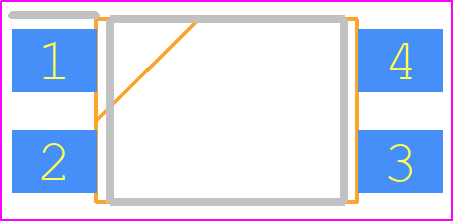

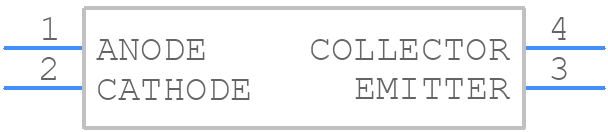

Use the download button to access the PS2535L-1-V-A schematic symbol, PCB footprint, and 3D model.
