PS2561DL2-1Y-A - Renesas Electronics

Description: The PS2561D-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor. The PS2561D-1 is in a plastic DIP (Dual In-line Package) and the PS2561DL-1 is lead bending type (Gull-wing) for surface mount. The PS2561DL1-1 is lead bending type for long creepage distance. The PS2561DL2-1 is lead bending type for long creepage distance (Gull-wing) for surface mount.

Download PS2561DL2-1Y-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

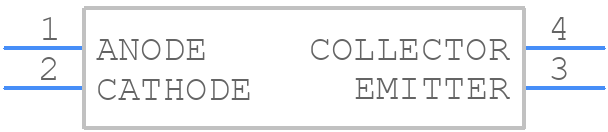

Symbol
PS2561DL2-1Y-A - Renesas Electronics - PCB symbol
click to zoom

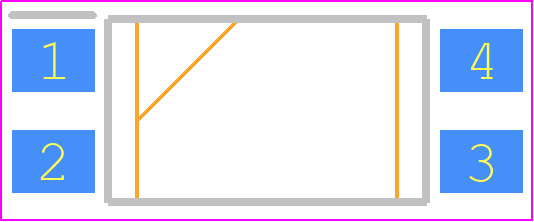

PCB Footprints
PS2561DL2-1Y-A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PS2562L2-1
click to zoom
3D Models
PS2561DL2-1Y-A - Renesas Electronics - 3D model - Small Outline Packages - PS2562L2-1
click to zoom

PS2561DL2-1Y-A Details

  • Manufacturer Part Number:

    PS2561DL2-1Y-A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.49.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    50%

  • Current Transfer Ratio-Nom:

    160%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.04 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e6

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    MAGAZINE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000003 s

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN BISMUTH

PS2561DL2-1Y-A Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signal traces separate and avoid crossing them over each other.
  • Use a low-ESR capacitor (e.g., 10uF) between VCC and GND, and a 0.1uF capacitor between AVCC and AGND. Ensure the power supply is stable and has low ripple.
  • The maximum clock frequency is 100 MHz, but it's recommended to operate at 50 MHz or lower for optimal performance and to minimize power consumption.
  • Use a heat sink or a thermal pad to dissipate heat. Ensure good airflow around the device and avoid blocking the airflow. Operate the device within the recommended temperature range (-40°C to 85°C).
  • Use the Renesas Flash Development Toolkit (FDT) or a third-party programmer that supports the PS2561DL2-1Y-A. Ensure the device is properly powered and the programming voltage is within the recommended range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PS2561DL2-1Y-A Overview

Use the download button to access the PS2561DL2-1Y-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS256, or try a keyword search, such as Optocoupler
