PS2565-1-A - Renesas Electronics

Description: The PS2565-1 is optically coupled isolators containing GaAs light emitting diodes and an NPN silicon phototransistor. The PS2565-1 is in a plastic DIP (Dual In-line Package) and the PS2565L-1 is lead bending type (Gull-wing) for surface mount. The PS2565L1-1 is lead bending type for long creepage distance. The PS2565L2-1 is lead bending type for long creepage distance (Gull-wing) for surface mount.

Download PS2565-1-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

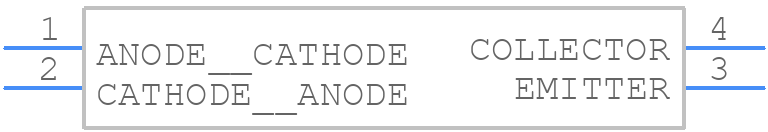

PS2565-1-A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

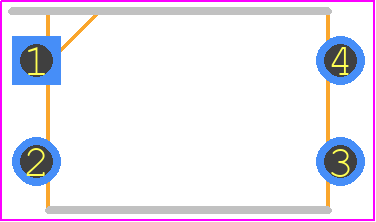

PS2565-1-A - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 4-DIP
click to zoom
3D Models
PS2565-1-A - Renesas Electronics - 3D model - Dual-In-Line Packages - 4-DIP
click to zoom

PS2565-1-A Details

  • Manufacturer Part Number:

    PS2565-1-A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-4

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.49.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    80 V

  • Configuration:

    SINGLE

  • Current Transfer Ratio-Min:

    80%

  • Current Transfer Ratio-Nom:

    200%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.08 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e1

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.05 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    AC INPUT-TRANSISTOR OUTPUT OPTOCOUPLER

  • Packing Method:

    MAGAZINE

  • Power Dissipation-Max:

    0.15 W

  • Response Time-Max:

    0.000003 s

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

PS2565-1-A Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital signal traces separate and avoid crossing them over each other.
  • Use a low-ESR capacitor (e.g., 10uF) between VCC and GND, and a 1uF capacitor between AVCC and AGND. Place these capacitors as close to the device as possible.
  • The maximum clock frequency is 100 MHz, but it's recommended to use a clock frequency of 50 MHz or less to ensure reliable operation.
  • Use a heat sink or a thermal pad to dissipate heat. Ensure good airflow around the device and avoid blocking the airflow with other components.
  • Use the Renesas Flash Development Toolkit (FDT) or a third-party programmer that supports the PS2565-1-A. Follow the programming guidelines in the datasheet and the programmer's documentation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PS2565-1-A Overview

Use the download button to access the PS2565-1-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS256, or try a keyword search, such as Optocoupler
