Description:The PS2703-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor. This is mounted in a plastic SOP (Small Outline Package) for high density applications. This package has shield effect to cut off ambient light.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes layout considerations for the device, such as trace routing, component placement, and thermal management.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions and thermal management guidelines provided in the datasheet. Additionally, consider using thermal interface materials, heat sinks, or fans to maintain a safe operating temperature.
Renesas recommends following standard ESD handling precautions, such as using anti-static wrist straps, mats, and packaging materials. The device has built-in ESD protection, but it's still important to handle the device with care to prevent damage.
While the PS2703-1-V-A is designed for isolated power supply applications, it can be used in non-isolated designs with proper circuit modifications and safety considerations. However, this may require additional components and design expertise to ensure safe and reliable operation.
Renesas provides troubleshooting guides and application notes that cover common issues and their solutions. Additionally, engineers can use standard debugging techniques, such as monitoring output voltage and current, checking component values, and verifying PCB layout and assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS2703-1-V-A Overview

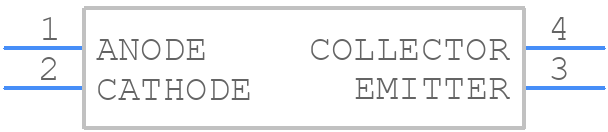

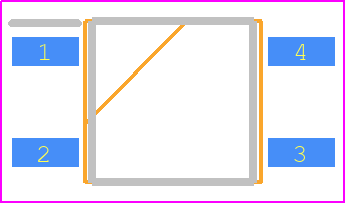

Use the download button to access the PS2703-1-V-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS270,
or try a keyword search, such as Optocoupler
