PS2711-1-F3-A - Renesas Electronics

Description: The PS2711-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor in a plastic SOP for high density applications. The package is an SOP (Small Outline Package) type for high density mounting applications.

Download PS2711-1-F3-A Model

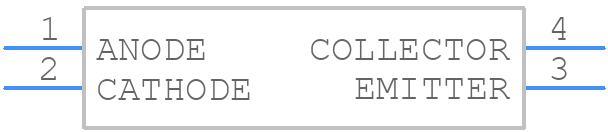

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

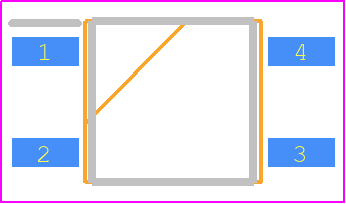

PS2711-1-F3-A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 4pin sop
