Description:Support is limited to customers who have already adopted these products.The PS2801A-1 and PS2801A-4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor in a plastic SSOP for high density applications to realize an excellent cost performance. This package has shield effect to cut off ambient light.
For optimal performance, it's recommended to follow the PCB layout guidelines provided in the application note (ANXXXX) and ensure a thermal resistance of less than 10°C/W. A 4-layer PCB with a solid ground plane and a thermal pad connected to a heat sink is recommended.
To ensure EMC compliance, follow the guidelines in the IEC 61000-4-x series and CISPR 24 standards. Use a shielded enclosure, minimize loop areas, and add EMI filters as necessary. Also, ensure the device is properly decoupled and bypassed.
For soldering, use a temperature profile with a peak temperature of 240°C and a dwell time of 30-60 seconds. For rework, use a hot air rework station with a temperature of 220°C and a dwell time of 10-30 seconds. Always follow the IPC-J-STD-001 guidelines.
Use a logic analyzer or oscilloscope to monitor the device's signals. Check the device's datasheet and application notes for troubleshooting guides. Also, consult the Renesas Electronics Corporation support resources and community forums for additional guidance.
The PS2801A-1-F3-A has a typical lifespan of 10-15 years, depending on operating conditions. Follow the recommended operating conditions and storage guidelines to ensure optimal reliability. Consult the device's reliability report and the Renesas Electronics Corporation support resources for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS2801A-1-F3-A Overview

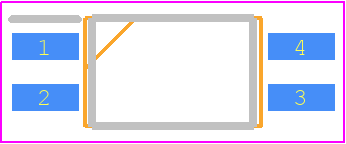

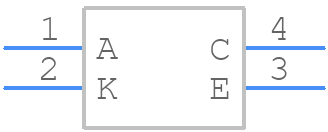

Use the download button to access the PS2801A-1-F3-A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PS280,
or try a keyword search, such as Optocoupler
