Part Image

PS2802-4-F3-A - Renesas Electronics

Description: The PS2802-1 and PS2802-4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington-connected photo transistor in a plastic SSOP for high density applications. This package has shield effect to cut off ambient light.

Download PS2802-4-F3-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

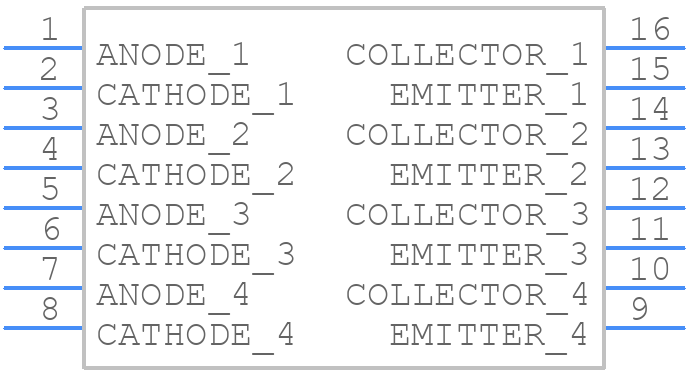

Symbol
PS2802-4-F3-A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
PS2802-4-F3-A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PS2802-4-F3-A
click to zoom
3D Models
PS2802-4-F3-A - Renesas Electronics - 3D model - Small Outline Packages - PS2802-4-F3-A
click to zoom

PS2802-4-F3-A Details

  • Manufacturer Part Number:

    PS2802-4-F3-A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    40 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    200%

  • Current Transfer Ratio-Nom:

    200%

  • Dark Current-Max:

    400 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e6

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.1 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Power Dissipation-Max:

    0.12 W

  • Response Time-Max:

    0.0002 s

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Bismuth (Sn98Bi2)

PS2802-4-F3-A Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and EMI.
  • Use a thermal pad or a heat sink to dissipate heat, and ensure good airflow around the device. Also, follow the recommended operating conditions and derating guidelines in the datasheet.
  • Monitor the output voltage, output current, and efficiency during production testing. Also, verify the device's functionality and performance under various load conditions.
  • The POR and BOR features are enabled by default. Ensure that your system design can handle the reset signals and voltage monitoring. You can also disable these features by tying the relevant pins to VCC or GND, as specified in the datasheet.
  • Follow the recommended PCB layout and component placement guidelines to minimize EMI. Use shielding, filtering, and grounding techniques to reduce electromagnetic interference. Ensure compliance with relevant EMC standards and regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PS2802-4-F3-A Overview

Use the download button to access the PS2802-4-F3-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS280, or try a keyword search, such as Optocoupler
