PS2802-4-V-F3-A - Renesas Electronics

Description: The PS2802-1 and PS2802-4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington-connected photo transistor in a plastic SSOP for high density applications. This package has shield effect to cut off ambient light.

Download PS2802-4-V-F3-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

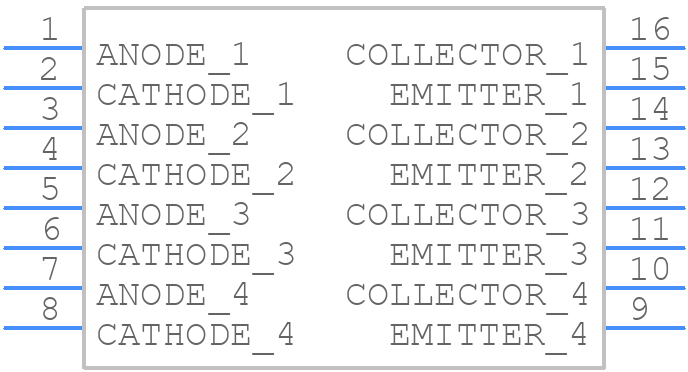

PS2802-4-V-F3-A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
PS2802-4-V-F3-A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - SOP-16
click to zoom
3D Models
PS2802-4-V-F3-A - Renesas Electronics - 3D model - Small Outline Packages - SOP-16
click to zoom

PS2802-4-V-F3-A Details

  • Manufacturer Part Number:

    PS2802-4-V-F3-A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    40 V

  • Configuration:

    SEPARATE, 4 CHANNELS

  • Current Transfer Ratio-Min:

    200%

  • Current Transfer Ratio-Nom:

    200%

  • Dark Current-Max:

    400 nA

  • Forward Current-Max:

    0.05 A

  • Forward Voltage-Max:

    1.4 V

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e6

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    4

  • On-State Current-Max:

    0.1 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    DARLINGTON OUTPUT OPTOCOUPLER

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Power Dissipation-Max:

    0.12 W

  • Response Time-Max:

    0.0002 s

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN BISMUTH

PS2802-4-V-F3-A Frequently Asked Questions (FAQs)

  • A good PCB layout for the PS2802-4-V-F3-A involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths to reduce noise and electromagnetic interference (EMI).
  • To ensure reliable operation across the full temperature range (-40°C to 100°C), ensure that the device is operated within the recommended voltage and current ratings, and that the PCB is designed to minimize thermal resistance and thermal stress.
  • The creepage and clearance distances of the PS2802-4-V-F3-A are critical for ensuring electrical isolation and safety. Ensure that the PCB design and assembly meet the recommended distances to prevent electrical arcing or tracking.
  • The input/output capacitance of the PS2802-4-V-F3-A can affect the device's performance. Consider using a capacitor in parallel with the input or output to filter out high-frequency noise, and ensure that the capacitance values are within the recommended range.
  • To minimize EMI and RFI, use a shielded cable or a twisted pair for the input and output connections, and ensure that the PCB is designed with EMI-reducing features such as ground planes and shielding.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PS2802-4-V-F3-A Overview

Use the download button to access the PS2802-4-V-F3-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS280, or try a keyword search, such as Optocoupler
