Description:The PS2815-1 and PS2815-4 are optically coupled isolators containing GaAs light emitting diodes and an NPN silicon phototransistor in a plastic SSOP for high density applications. The package is a Shrink SOP (Small Outline Package) type for high density mounting applications.
Renesas provides a recommended PCB layout guide in their application notes (e.g., AN18421) and evaluation board documentation. It's essential to follow these guidelines to ensure proper thermal management, noise reduction, and signal integrity.
Renesas recommends using an external overvoltage protection (OVP) circuit, such as a voltage supervisor IC or a dedicated OVP IC, to protect the device from voltage surges or spikes. The OVP circuit should be designed to trigger at a voltage slightly higher than the maximum recommended input voltage.
While the datasheet doesn't specify a maximum capacitance value, Renesas recommends keeping the output capacitance (COUT) below 10uF to ensure stability and prevent oscillations. Larger capacitance values may require additional stabilization components or design modifications.
The PS2815-1-V-A is rated for operation up to 105°C (TJ). However, for reliable operation, Renesas recommends derating the device's power dissipation and ensuring proper thermal management, such as using a heat sink or thermal pad, to keep the junction temperature (TJ) below 100°C.
Renesas provides a troubleshooting guide in their application notes (e.g., AN18421) and technical support resources. Common issues include incorrect pin connections, inadequate power supply decoupling, or improper PCB layout. Use oscilloscopes and logic analyzers to debug the device's behavior and identify the root cause of the issue.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS2815-1-V-A Overview

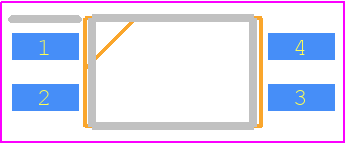

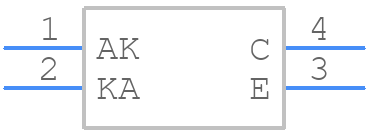

Use the download button to access the PS2815-1-V-A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PS281,
or try a keyword search, such as Optocoupler
