Description:The PS2861B-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor. The package has a shield effect to cut off ambient light, and is mounted in a Shrink SOP (Small Outline Package) for high density applications. Due to the high isolation voltage between the input and output, the PS2861B-1 is suitable for interface and signal transfer circuits that require surface or high-density mounting.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes layout considerations for the PS2861B-1Y-A, such as keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce EMI.
To ensure reliable operation over the full temperature range, it's essential to follow the recommended operating conditions, including voltage and current ratings. Additionally, consider using thermal management techniques, such as heat sinks or thermal pads, to keep the device within its specified temperature range.
The PS2861B-1Y-A has built-in ESD protection diodes on its input and output pins. However, it's still recommended to follow proper ESD handling procedures during assembly and testing. For latch-up prevention, Renesas recommends using a latch-up prevention circuit, such as a resistor-capacitor (RC) network, on the input pins.
The PS2861B-1Y-A is a commercial-grade device, but Renesas does offer industrial-grade and automotive-grade versions of similar devices. For high-reliability or safety-critical applications, it's recommended to consult with Renesas or a qualified distributor to determine the most suitable device for the specific requirements.
Renesas provides test and measurement guidelines in their datasheet and application notes. Additionally, it's recommended to use a high-impedance probe or a differential probe to measure the output signals, and to use a low-noise power supply to minimize noise and interference.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS2861B-1Y-A Overview

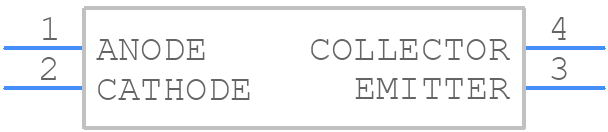

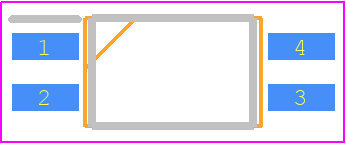

Use the download button to access the PS2861B-1Y-A schematic symbol, PCB footprint, and 3D model.
