A good PCB layout for the PS508QEX should consider the following: keep the input and output traces short and separate, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper biasing, connect the EN pin to a logic high (VCC) to enable the device. The VIN pin should be connected to a stable voltage source, and the VOUT pin should be decoupled with a capacitor to filter out noise. Additionally, ensure the input voltage is within the recommended operating range.
The PS508QEX can drive a maximum capacitive load of 10uF. Exceeding this value may cause instability or oscillations. If a larger capacitive load is required, consider adding a series resistor or using a different device.
To manage thermal issues, ensure good airflow around the device, and consider using a heat sink or thermal pad. The device's thermal pad should be connected to a solid ground plane to dissipate heat efficiently. Keep the device's junction temperature below 125°C to ensure reliable operation.
The PS508QEX has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS508QEX Overview

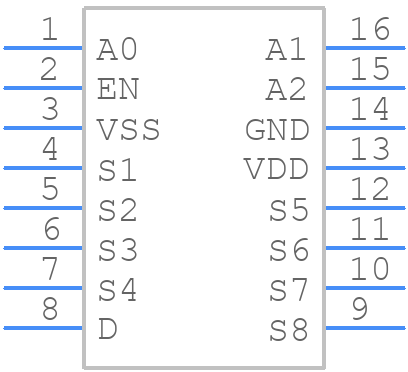

Use the download button to access the PS508QEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS508,
or try a keyword search, such as Multiplexers or Switches
