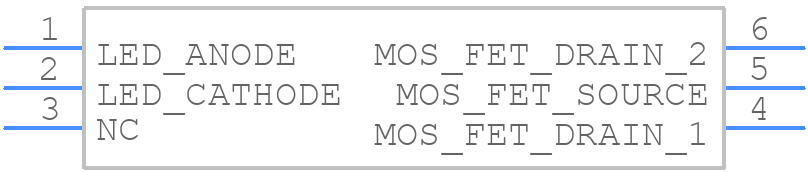

PS7113-1A-A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
PS7113-1A-A - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PS7113-1A
click to zoom
3D Models
PS7113-1A-A - Renesas Electronics - 3D model - Dual-In-Line Packages - PS7113-1A
click to zoom

PS7113-1A-A Details

  • Manufacturer Part Number:

    PS7113-1A-A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE, DIP-6

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Control Current:

    0.002 A

  • Control Voltage:

    1.2 V

  • Forward Current-Max:

    0.02 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    1500 V

  • JESD-609 Code:

    e1

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.35 A

  • On-state Resistance-Max:

    2.5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    4.45 mm

  • Overall Length:

    9.25 mm

  • Packing Method:

    MAGAZINE

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN SILVER COPPER
