PS7113L-1A-A - Renesas Electronics

Description: The PS7113L-1A is a 6, 8-Pin Dip, 100 V Break Down Voltage.

Download PS7113L-1A-A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

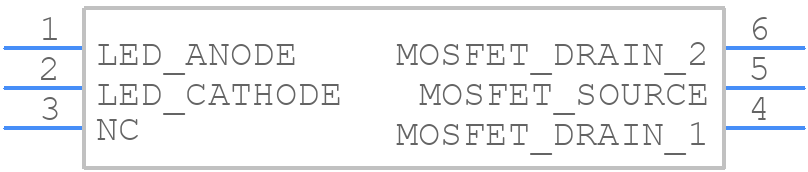

Symbol
PS7113L-1A-A - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
PS7113L-1A-A - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 6-DIP Gull Wing
click to zoom
3D Models
PS7113L-1A-A - Renesas Electronics - 3D model - Small Outline Packages - 6-DIP Gull Wing
click to zoom

PS7113L-1A-A Details

  • Manufacturer Part Number:

    PS7113L-1A-A

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE, SURFACE MOUNT, DIP-6

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Additional Feature:

    UL APPROVED

  • Configuration:

    SINGLE

  • Control Current:

    0.002 A

  • Control Voltage:

    1.2 V

  • Forward Current-Max:

    0.02 A

  • Input Type:

    DC

  • Isolation Voltage-Max:

    1500 V

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • On-State Current-Max:

    0.35 A

  • On-state Resistance-Max:

    2.5 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Output Circuit Type:

    MOSFET

  • Overall Height:

    4 mm

  • Overall Length:

    9.25 mm

  • Packing Method:

    MAGAZINE

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN SILVER COPPER

PS7113L-1A-A Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) document, which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
  • The PS7113L-1A-A has a built-in overcurrent protection feature, but it's not enabled by default. To implement overcurrent protection, you need to set the OCSET pin to a specific voltage level, which determines the overcurrent threshold. Refer to the datasheet for the OCSET pin voltage-to-current threshold table.
  • The PS7113L-1A-A can drive a maximum capacitive load of 10uF. Exceeding this limit may cause instability or oscillations in the output voltage. If you need to drive a larger capacitive load, consider adding an output capacitor with a series resistor to dampen the output.
  • The output voltage of the PS7113L-1A-A can be adjusted by connecting a resistor divider network between the VOUT pin and the GND pin. The ratio of the resistors determines the output voltage. Refer to the datasheet for the resistor ratio calculation formula.
  • The minimum input voltage required for the PS7113L-1A-A to operate is 2.5V. However, the device can operate down to 2.3V with reduced performance and efficiency. It's recommended to operate the device within the specified input voltage range (2.5V to 5.5V) for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PS7113L-1A-A Overview

Use the download button to access the PS7113L-1A-A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS711, or try a keyword search, such as Solid State Relays
