PS8501-AX - Renesas Electronics

Description: The PS8501, PS8501L1, PS8501L2 and PS8501L3 are 8-pin High-Speed photocouplers containing a GaAIAs LED on input side and a PN photodiode and a High-Speed amplifier transistor on output side on one chip. The PS8501 is in a plastic DIP (Dual In-line Package) with 8 mm creepage distance product. The PS8501L1 is lead bending type for long creepage distance. The PS8501L2 is lead bending type for long creepage distance (Gull-wing) for surface mount. The PS8501L3 is lead bending type (Gull-wing) for surface mounti

Download PS8501-AX Model

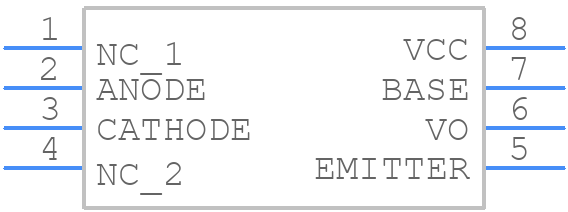

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PS8501-AX - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PS8502-AX
click to zoom
3D Models
PS8501-AX - Renesas Electronics  - 3D model - Dual-In-Line Packages - PS8502-AX
click to zoom

PS8501-AX Details

  • Manufacturer Part Number:

    PS8501-AX

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • Country Of Origin:

    Japan

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Additional Feature:

    CMOS COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e4

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    MAGAZINE

  • Response Time-Max:

    8e-7 s

  • Response Time-Nom:

    3.5e-7 ns

  • Surface Mount:

    NO

  • Terminal Finish:

    NICKEL PALLADIUM GOLD
