PS8501-V-AX - Renesas Electronics

Description: The PS8501, PS8501L1, PS8501L2 and PS8501L3 are 8-pin High-Speed photocouplers containing a GaAIAs LED on input side and a PN photodiode and a High-Speed amplifier transistor on output side on one chip. The PS8501 is in a plastic DIP (Dual In-line Package) with 8 mm creepage distance product. The PS8501L1 is lead bending type for long creepage distance. The PS8501L2 is lead bending type for long creepage distance (Gull-wing) for surface mount. The PS8501L3 is lead bending type (Gull-wing) for surface mounti

Download PS8501-V-AX Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this PS8501-V-AX model

Email notifications will be applied after download.

Send part feedback

Symbol

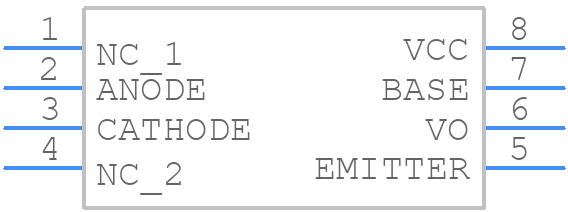

PS8501-V-AX - Renesas Electronics - PCB symbol

PCB Footprints

PS8501-V-AX - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PS8501__

3D Models

PS8501-V-AX - Renesas Electronics - 3D model - Dual-In-Line Packages - PS8501__

Datasheet Download Datasheet
Stock & Prices Price & Stock for PS8501-V-AX
Part Number PS8501-V-AX
Manufacturer Renesas Electronics
Pin Count 8
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - PS8501__
Released Date Dec 30, 2019
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

PS8501-V-AX Details

Manufacturer Part Number:
PS8501-V-AX
Brand Name:
Renesas
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DIP-8
Country Of Origin:
Japan
HTS Code:
8541.40.80.00
Factory Lead Time:
18 Weeks
Manufacturer:
Renesas Electronics Corporation
YTEOL:
6
Additional Feature:
CMOS COMPATIBLE, UL RECOGNIZED, VDE APPROVED
Configuration:
SINGLE
Forward Current-Max:
0.025 A
Isolation Voltage-Max:
5000 V
JESD-609 Code:
e4
Mounting Feature:
THROUGH HOLE MOUNT
Number of Elements:
1
Number of Functions:
1
On-State Current-Max:
0.008 A
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-55 °C
Optoelectronic Device Type:
LOGIC IC OUTPUT OPTOCOUPLER
Packing Method:
MAGAZINE
Response Time-Max:
8e-7 s
Response Time-Nom:
3.5e-7 ns
Surface Mount:
NO
Terminal Finish:
NICKEL PALLADIUM GOLD

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PS8501-V-AX Overview

Use the download button to access the PS8501-V-AX schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like PS850, or try a keyword search, such as Optocoupler
