PS8501L3-AX - Renesas Electronics

Description: The PS8501, PS8501L1, PS8501L2 and PS8501L3 are 8-pin High-Speed photocouplers containing a GaAIAs LED on input side and a PN photodiode and a High-Speed amplifier transistor on output side on one chip. The PS8501 is in a plastic DIP (Dual In-line Package) with 8 mm creepage distance product. The PS8501L1 is lead bending type for long creepage distance. The PS8501L2 is lead bending type for long creepage distance (Gull-wing) for surface mount. The PS8501L3 is lead bending type (Gull-wing) for surface mounti

Download PS8501L3-AX Model

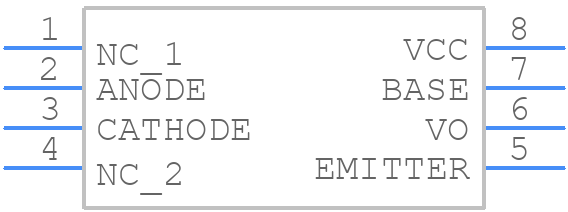

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PS8501L3-AX - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PS8501L3-AX
click to zoom
3D Models
PS8501L3-AX - Renesas Electronics  - 3D model - Small Outline Packages - PS8501L3-AX
click to zoom

PS8501L3-AX Details

  • Manufacturer Part Number:

    PS8501L3-AX

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Additional Feature:

    CMOS COMPATIBLE, UL RECOGNIZED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    MAGAZINE

  • Response Time-Max:

    8e-7 s

  • Response Time-Nom:

    3.5e-7 ns

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

PS8501L3-AX Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes layout considerations for thermal management, noise reduction, and signal integrity.
  • Renesas recommends using an external overvoltage protection (OVP) circuit, such as a voltage supervisor IC, to protect the PS8501L3-AX from voltage surges. The OVP circuit should be designed to trigger at a voltage slightly higher than the maximum recommended input voltage.
  • While the datasheet doesn't specify a maximum capacitance, Renesas recommends keeping the output filter capacitance below 10uF to ensure stability and prevent oscillations. Larger capacitances may require additional design considerations and simulation to ensure stability.
  • Renesas provides thermal design guidelines in their application notes, including recommendations for thermal vias, heat sinks, and PCB material selection. Additionally, thermal simulation tools, such as FloTHERM or ANSYS, can be used to optimize the thermal design.
  • Renesas recommends using a low-ESR ceramic capacitor with a value between 1uF to 10uF, depending on the input voltage and frequency. The capacitor should be placed as close as possible to the input pins to minimize noise and ensure stability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PS8501L3-AX Overview

Use the download button to access the PS8501L3-AX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS850, or try a keyword search, such as Optocoupler
