PS8802-1-F3-AX - Renesas Electronics

Description: Support is limited to customers who have already adopted these products.The PS8802-1, -2 are optically coupled isolators containing a GaAlAs LED on the light emitting diode (input side)and a PIN photodiode and a high-speed amplifier transistor on the output side on one chip. The PS8802-1, -2 are designed specifically for high common mode transient immunity (CMR), the PS8802-2 is suitable for high density applications.

Download PS8802-1-F3-AX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

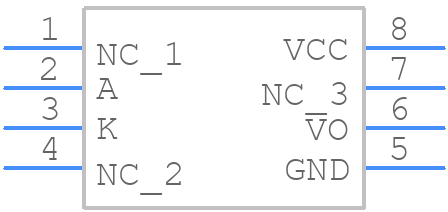

Symbol
PS8802-1-F3-AX - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
PS8802-1-F3-AX - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 8
click to zoom
3D Models
PS8802-1-F3-AX - Renesas Electronics - 3D model - Small Outline Packages - SOIC 8
click to zoom

PS8802-1-F3-AX Details

  • Manufacturer Part Number:

    PS8802-1-F3-AX

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Country Of Origin:

    Japan

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LINEAR IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Response Time-Max:

    0.0000012 s

  • Response Time-Nom:

    6e-7 ns

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

PS8802-1-F3-AX Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the PS8802-1-F3-AX is -40°C to 125°C.
  • To ensure proper power supply, connect the VCC pin to a 3.3V power source, and the GND pin to a reliable ground connection. Also, make sure to decouple the power supply with a 0.1uF capacitor.
  • The maximum current rating for the PS8802-1-F3-AX is 50mA. Exceeding this rating may cause damage to the device.
  • To configure the PS8802-1-F3-AX for I2C communication, connect the SCL pin to the I2C clock line, and the SDA pin to the I2C data line. Make sure to pull-up the SCL and SDA lines with 2.2kΩ resistors.
  • The INT pin is an interrupt output that signals when a proximity detection event occurs. It can be connected to a microcontroller's interrupt input to trigger an interrupt service routine.
