Description:Support is limited to customers who have already adopted these products.The PS8802-1, -2 are optically coupled isolators containing a GaAlAs LED on the light emitting diode (input side)and a PIN photodiode and a high-speed amplifier transistor on the output side on one chip. The PS8802-1, -2 are designed specifically for high common mode transient immunity (CMR), the PS8802-2 is suitable for high density applications.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The PS8802-2-AX has a built-in overcurrent protection feature, but it's recommended to add external overcurrent protection circuitry, such as a fuse or a current sense resistor, to provide additional protection and ensure safe operation.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to consider the derating curves and thermal management guidelines provided in the datasheet to ensure reliable operation within the specified temperature range.
Yes, the PS8802-2-AX is designed to operate in high-vibration environments, but it's crucial to follow the recommended mounting and soldering guidelines to ensure reliable operation and prevent mechanical stress.
Renesas provides a troubleshooting guide in their application notes and technical support resources, which include steps for identifying and resolving common issues, such as output voltage errors, overcurrent conditions, and thermal shutdowns.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS8802-2-AX Overview

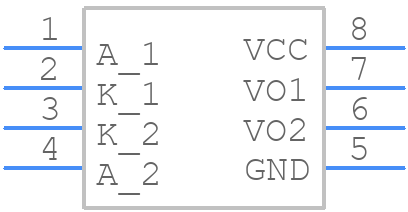

Use the download button to access the PS8802-2-AX schematic symbol, PCB footprint, and 3D model.
