PS8802-2-F3-AX - Renesas Electronics

Description: Support is limited to customers who have already adopted these products.The PS8802-1, -2 are optically coupled isolators containing a GaAlAs LED on the light emitting diode (input side)and a PIN photodiode and a high-speed amplifier transistor on the output side on one chip. The PS8802-1, -2 are designed specifically for high common mode transient immunity (CMR), the PS8802-2 is suitable for high density applications.

Download PS8802-2-F3-AX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

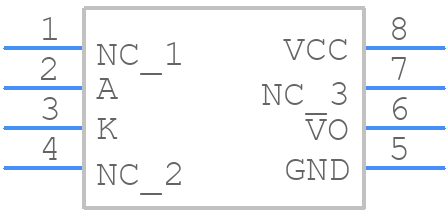

Symbol
PS8802-2-F3-AX - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
PS8802-2-F3-AX - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PS8802-1-1
click to zoom
3D Models
PS8802-2-F3-AX - Renesas Electronics - 3D model - Small Outline Packages - PS8802-1-1
click to zoom

PS8802-2-F3-AX Details

  • Manufacturer Part Number:

    PS8802-2-F3-AX

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • Manufacturer Package Code:

    RELDUMMY00

  • Country Of Origin:

    Japan

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LINEAR IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Response Time-Max:

    0.0000012 s

  • Response Time-Nom:

    6e-7 ns

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

PS8802-2-F3-AX Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (AP6111) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • Renesas recommends using a thermal pad or a heat sink to dissipate heat. The device's thermal pad should be connected to a copper plane on the PCB to improve heat dissipation. Additionally, ensure good airflow around the device and avoid blocking airflow with nearby components.
  • Renesas recommends powering up the device in the following sequence: VCC, then VDD, and finally EN (enable) pin. This sequence ensures proper device initialization and prevents unwanted behavior.
  • Renesas provides a troubleshooting guide in their application note (AP6111) which covers common issues, such as output voltage deviations, oscillations, and shutdown issues. Additionally, engineers can use oscilloscopes and logic analyzers to debug the device's behavior.
  • Critical components to consider include input and output capacitors, inductors, and resistors. Ensure that these components meet the recommended specifications and are properly sized to handle the device's operating conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PS8802-2-F3-AX Overview

Use the download button to access the PS8802-2-F3-AX schematic symbol, PCB footprint, and 3D model.
