PS8902-Y-V-F3-AX - Renesas Electronics

Description: The PS8902 is an optically coupled isolator containing an AlGaAs LED on the light emitting diode (input side) and a PIN photodiode and a high-speed amplifier transistor on the output side on one chip.

Download PS8902-Y-V-F3-AX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

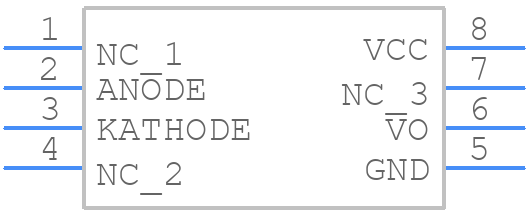

PS8902-Y-V-F3-AX - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
PS8902-Y-V-F3-AX - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - SOIC8
click to zoom
3D Models
PS8902-Y-V-F3-AX - Renesas Electronics - 3D model - Small Outline Packages - SOIC8
click to zoom

PS8902-Y-V-F3-AX Details

  • Manufacturer Part Number:

    PS8902-Y-V-F3-AX

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SDIP-6

  • Manufacturer Package Code:

    RELDUMMY00

  • Country Of Origin:

    Japan

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Additional Feature:

    VDE APPROVED, UL APPROVED

  • Configuration:

    SINGLE

  • Data Rate-Nom:

    1 MBps

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    7500 V

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • On-State Current-Max:

    0.008 A

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -55 °C

  • Optoelectronic Device Type:

    LINEAR IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Response Time-Max:

    0.0000012 s

  • Response Time-Nom:

    5e-7 ns

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

PS8902-Y-V-F3-AX Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) document, which includes thermal vias, copper pours, and component placement guidelines to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a fuse or a dedicated overcurrent protection IC, to prevent damage to the device. The datasheet provides guidelines for selecting the appropriate overcurrent protection component.
  • Although the datasheet specifies a maximum operating voltage of 5.5V, Renesas recommends limiting the voltage on the VIN pin to 4.5V during startup to ensure reliable operation and prevent damage to the device.
  • Renesas provides EMC guidelines in their application note, which includes recommendations for PCB layout, component selection, and shielding to ensure compliance with relevant EMC standards.
  • Although the datasheet specifies an operating temperature range of -40°C to 105°C, Renesas recommends operating the device within a range of -20°C to 85°C for optimal performance and reliability.
