Description:The PS9332L and PS9332L2 are optical coupled isolators containing a GaAlAs LED on the input side and a photo diode, a signal processing circuit and a power output transistor on the output side on one chip. The PS9332L and PS9332L2 are designed specifically for high common mode transient immunity (CMR), high output current, active miller clamp and high switching speed. The PS9332L and PS9332L2 are suitable for driving IGBTs and MOS FETs.
Renesas provides a recommended PCB layout guide in their application note (APN) document, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The PS9332L-E3-AX requires a specific power sequencing scheme to ensure proper operation. Renesas recommends a power-up sequence of VCC, then VDD, and finally EN (enable) pin. A detailed power sequencing diagram is available in the application note (APN) document.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Renesas recommends derating the device's performance at higher temperatures. For optimal performance, it's recommended to operate the device within a temperature range of -20°C to 70°C.
Renesas provides a troubleshooting guide in their application note (APN) document, which includes common issues, symptoms, and solutions. Additionally, Renesas offers technical support and FAQs on their website to help engineers troubleshoot issues with the PS9332L-E3-AX.
Yes, Renesas recommends several EMI mitigation techniques, including using a ground plane, shielding, and filtering. Additionally, Renesas provides guidelines for component placement and routing to minimize EMI. These guidelines are available in the application note (APN) document.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS9332L-E3-AX Overview

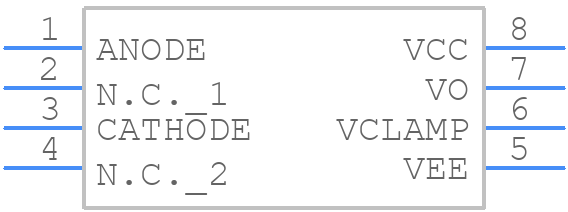

Use the download button to access the PS9332L-E3-AX schematic symbol, PCB footprint, and 3D model.
