Description:The PS9513, PS9513L1, PS9513L2 and PS9513L3 are optically coupled isolators containing an AlGaAs LED on the input side and a photo diode and a signal processing circuit on the output side on one chip. The PS9513 is designed specifically for high common mode transient immunity (CMR) and low pulse width distortion with operating temperature. It is suitable for IPM drive. The PS9513L1 is lead bending type for long creepage distance. The PS9513L2 is lead bending type for long creepage distance (Gull-wing) for s
Renesas provides a recommended PCB layout guide in their application note (APN) document, which includes thermal design considerations, such as thermal vias, copper pours, and component placement. It's essential to follow these guidelines to ensure optimal thermal performance and prevent overheating.
The PS9513L2-E3-AX has a built-in overcurrent protection (OCP) feature, but it's not enabled by default. To implement OCP, you need to connect an external resistor (Rocp) between the OCP pin and GND, and set the OCP threshold voltage (Vocp) according to the datasheet. Additionally, you may want to consider adding an external overcurrent detection circuit for more robust protection.
The recommended input capacitor value and type depend on the specific application and operating conditions. As a general guideline, Renesas recommends using a low-ESR ceramic capacitor with a value between 4.7 μF and 10 μF. However, it's essential to consult the datasheet and application notes for more specific guidance, as the optimal capacitor value and type may vary depending on the input voltage, output current, and other factors.
To ensure EMC compliance, follow the guidelines outlined in the datasheet and application notes, including proper PCB layout, component selection, and shielding. Additionally, consider implementing EMI filtering, such as adding ferrite beads or common-mode chokes, to reduce electromagnetic interference. It's also essential to perform EMC testing and certification according to relevant industry standards, such as CISPR or FCC.
The PS9513L2-E3-AX has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (Tj) should not exceed 150°C. It's essential to ensure proper thermal design and heat dissipation to prevent overheating and ensure reliable operation within the specified temperature range.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS9513L2-E3-AX Overview

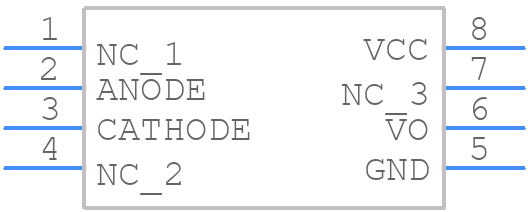

Use the download button to access the PS9513L2-E3-AX schematic symbol, PCB footprint, and 3D model.
