PS9531L2-V-AX - Renesas Electronics

Description: The PS9531, PS9531L1, PS9531L2 and PS9531L3 are optically coupled isolators containing a GaAlAs LED on the input side and a photo diode, a signal processing circuit and a power output transistor on the output side on one chip. The PS9531 Series is designed specifically for high common mode transient immunity (CMR), high output current and high switching speed. The PS9531 Series is suitable for driving IGBTs and MOS FETs. The PS9531 Series is in a plastic DIP (Dual In-line Package). The PS9531L1 is lead bend

Download PS9531L2-V-AX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

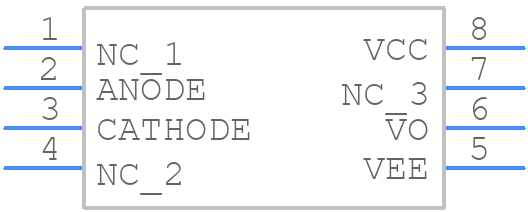

PS9531L2-V-AX - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
PS9531L2-V-AX - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PS8502L2+
click to zoom
3D Models
PS9531L2-V-AX - Renesas Electronics - 3D model - Small Outline Packages - PS8502L2+
click to zoom

PS9531L2-V-AX Details

  • Manufacturer Part Number:

    PS9531L2-V-AX

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer Package Code:

    RELDUMMY00

  • Country Of Origin:

    Japan

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED, VDE APPROVED

  • Configuration:

    SINGLE

  • Forward Current-Max:

    0.025 A

  • Isolation Voltage-Max:

    5000 V

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    Magazine

  • Response Time-Nom:

    4e-8 ns

  • Supply Voltage-Min:

    15 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

PS9531L2-V-AX Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APN) document, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
  • The PS9531L2-V-AX has an internal OVP circuit, but it's recommended to add external OVP components, such as a voltage supervisor or a dedicated OVP IC, to provide additional protection against overvoltage conditions.
  • The PS9531L2-V-AX has an operating temperature range of -40°C to 125°C, but it's essential to consider the derating curves and thermal management guidelines provided in the datasheet to ensure reliable operation.
  • Yes, the PS9531L2-V-AX is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's crucial to follow the recommended design and testing guidelines to ensure compliance with the required standards.
  • Renesas provides a troubleshooting guide in their application note (APN) document, which includes step-by-step procedures for identifying and resolving common issues. Additionally, engineers can use oscilloscopes and other debugging tools to analyze the circuit behavior.
