Description:The PS9587, PS9587L1, PS9587L2 and PS9587L3 are optically coupled isolators containing a GaAlAs LED on the input side and a photo diode and a signal processing circuit on the output side on one chip. The PS9587L1 and PS9587L2 are designed specifically for long creepage-distance as well as high common mode transient immunity (CMR) and High-Speed digital output type. Consequently, they are suitable for High-Speed logic interface that needs long creepage-distance (8 mm) on mounting. The PS9587L1 is lead bendin
Renesas provides a recommended PCB layout guide in their application note (APN) document, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The PS9587-AX has a built-in overcurrent protection feature, but it's not enabled by default. To implement overcurrent protection, you need to connect an external resistor to the OCP pin and set the threshold voltage according to the datasheet. Additionally, you can use an external overcurrent protection IC for more advanced protection features.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Renesas recommends derating the device's performance at high temperatures. For reliable operation, it's recommended to keep the junction temperature below 125°C. Consult the datasheet and thermal management guidelines for more information.
Yes, the PS9587-AX is designed to operate in high-vibration environments. However, it's essential to ensure proper PCB mounting and component soldering to prevent mechanical stress. Renesas recommends following their guidelines for vibration testing and PCB design to ensure reliable operation.
Renesas provides a troubleshooting guide in their application note (APN) document, which includes a step-by-step approach to identifying and resolving common issues. Additionally, you can use Renesas' support resources, such as FAQs, knowledge base articles, and technical support forums, to find solutions to specific problems.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS9587-AX Overview

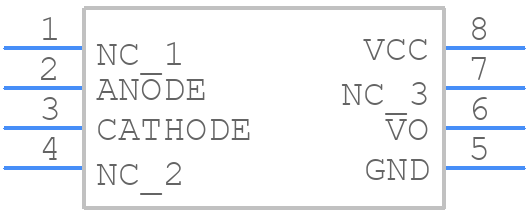

Use the download button to access the PS9587-AX schematic symbol, PCB footprint, and 3D model.
