Description:The PS9587, PS9587L1, PS9587L2 and PS9587L3 are optically coupled isolators containing a GaAlAs LED on the input side and a photo diode and a signal processing circuit on the output side on one chip. The PS9587L1 and PS9587L2 are designed specifically for long creepage-distance as well as high common mode transient immunity (CMR) and High-Speed digital output type. Consequently, they are suitable for High-Speed logic interface that needs long creepage-distance (8 mm) on mounting. The PS9587L1 is lead bendin
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes layout considerations for power supply, signal routing, and thermal management to ensure optimal performance and minimize noise.
The PS9587L3-E3-AX has a built-in overcurrent protection feature. To implement it, connect the OCP pin to a resistor divider network that sets the overcurrent threshold. The datasheet provides a calculation formula for the resistor values. Additionally, you can use an external circuit to enhance the protection feature.
The maximum junction temperature (Tj) for the PS9587L3-E3-AX is 150°C. However, it's recommended to operate the device within a temperature range of -40°C to 125°C for optimal performance and reliability.
Yes, the PS9587L3-E3-AX is designed to operate in high-vibration environments. However, it's essential to follow proper mounting and soldering techniques to ensure the device is securely attached to the PCB. Additionally, consider using a vibration-resistant capacitor and other components to minimize the risk of mechanical failure.
Renesas provides a troubleshooting guide in their application note (APN) documents, which covers common issues and their solutions. You can also contact Renesas' technical support team for assistance. Additionally, use oscilloscopes and other debugging tools to analyze the device's behavior and identify the root cause of the issue.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS9587L3-E3-AX Overview

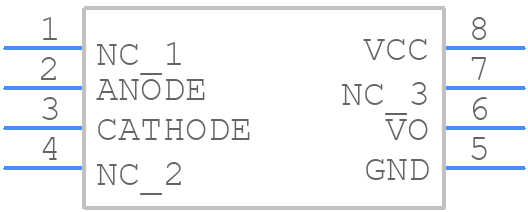

Use the download button to access the PS9587L3-E3-AX schematic symbol, PCB footprint, and 3D model.
