PS9821-2-AX - Renesas Electronics

Description: The PS9821-1 and PS9821-2 are active-low type high-speed photocouplers that use a GaAlAs light-emitting diode on the input side and a photodetector IC that includes a photodiode and a signal processor on the same chip on the output side. The PS9821-1, -2 are designed specifically for high common mode transient immunity (CMR) and low pulse width distortion, PS9821-2 is suitable for high density applications.

Download PS9821-2-AX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

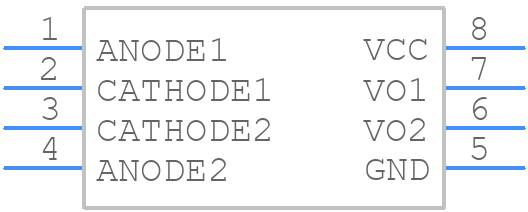

PS9821-2-AX - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
PS9821-2-AX - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SSOP
click to zoom
3D Models
PS9821-2-AX - Renesas Electronics - 3D model - Small Outline Packages - 8-Pin SSOP
click to zoom

PS9821-2-AX Details

  • Manufacturer Part Number:

    PS9821-2-AX

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-8

  • Country Of Origin:

    Japan

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Additional Feature:

    UL RECOGNIZED

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Data Rate-Nom:

    15 MBps

  • Forward Current-Max:

    0.015 A

  • Isolation Voltage-Max:

    2500 V

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Elements:

    2

  • Number of Functions:

    2

  • On-State Current-Max:

    0.025 A

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    LOGIC IC OUTPUT OPTOCOUPLER

  • Packing Method:

    TAPE

  • Response Time-Nom:

    2e-8 ns

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

PS9821-2-AX Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a metal shield around the device, and ensure that the PCB layout is designed to minimize radiation. Follow the recommended layout guidelines and use a common mode choke to reduce emissions.
  • The PS9821-2-AX is rated for operation from -40°C to 85°C. However, the device can be operated at temperatures up to 105°C for short periods, but this may affect its reliability and lifespan.
  • The POR and BOR functions are enabled by default. To disable them, tie the POR and BOR pins to VCC. Ensure that the power supply is stable and within the recommended voltage range to prevent unwanted resets.
  • The recommended clock frequency is 24 MHz, and the clock source can be either an external crystal oscillator or an external clock signal. Ensure that the clock signal is stable and within the recommended frequency range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PS9821-2-AX Overview

Use the download button to access the PS9821-2-AX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PS982, or try a keyword search, such as Optocoupler
