Description:The PS9851-1, PS9851-2 are optically coupled isolators containing GaAlAs LED on the input side and a CMOS output ICon the output side. They are high common mode transient immunity (CMR), high-speed CMOS output type photocouplers designed for high-speed logic interface circuits.
Renesas provides a recommended PCB layout guide in their application note (APN) document, which includes thermal design considerations, such as copper pour, thermal vias, and component placement. It's essential to follow these guidelines to ensure optimal thermal performance.
The PS9851-1-F3-AX has an internal overcurrent protection (OCP) feature, but it's not enabled by default. To implement OCP, you need to set the OCP threshold using the I2C interface and enable the OCP function. Refer to the datasheet and application notes for detailed instructions.
The maximum allowed voltage on the VCC pin during power-up and power-down sequences is 6.5V. Exceeding this voltage may damage the device. It's essential to ensure that the power supply voltage ramps up and down slowly to prevent voltage overshoots.
To troubleshoot I2C interface issues, use a logic analyzer or oscilloscope to monitor the SCL and SDA signals. Check for proper signal levels, clock frequency, and data transmission. Ensure that the I2C bus is not overloaded, and that the slave devices are properly addressed and configured.
The recommended operating temperature range for the PS9851-1-F3-AX is -40°C to 105°C. However, the device can operate up to 125°C with reduced performance and lifespan. It's essential to ensure proper thermal design and cooling to maintain optimal performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PS9851-1-F3-AX Overview

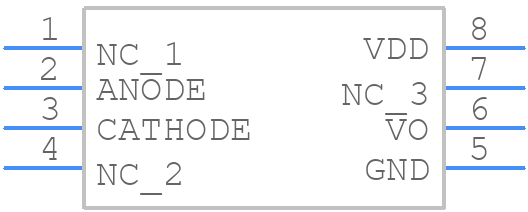

Use the download button to access the PS9851-1-F3-AX schematic symbol, PCB footprint, and 3D model.
