PSK-15D-5 footprint, schematic symbol and 3D model by CUI Inc.

Symbol

click to zoom

PCB Footprints

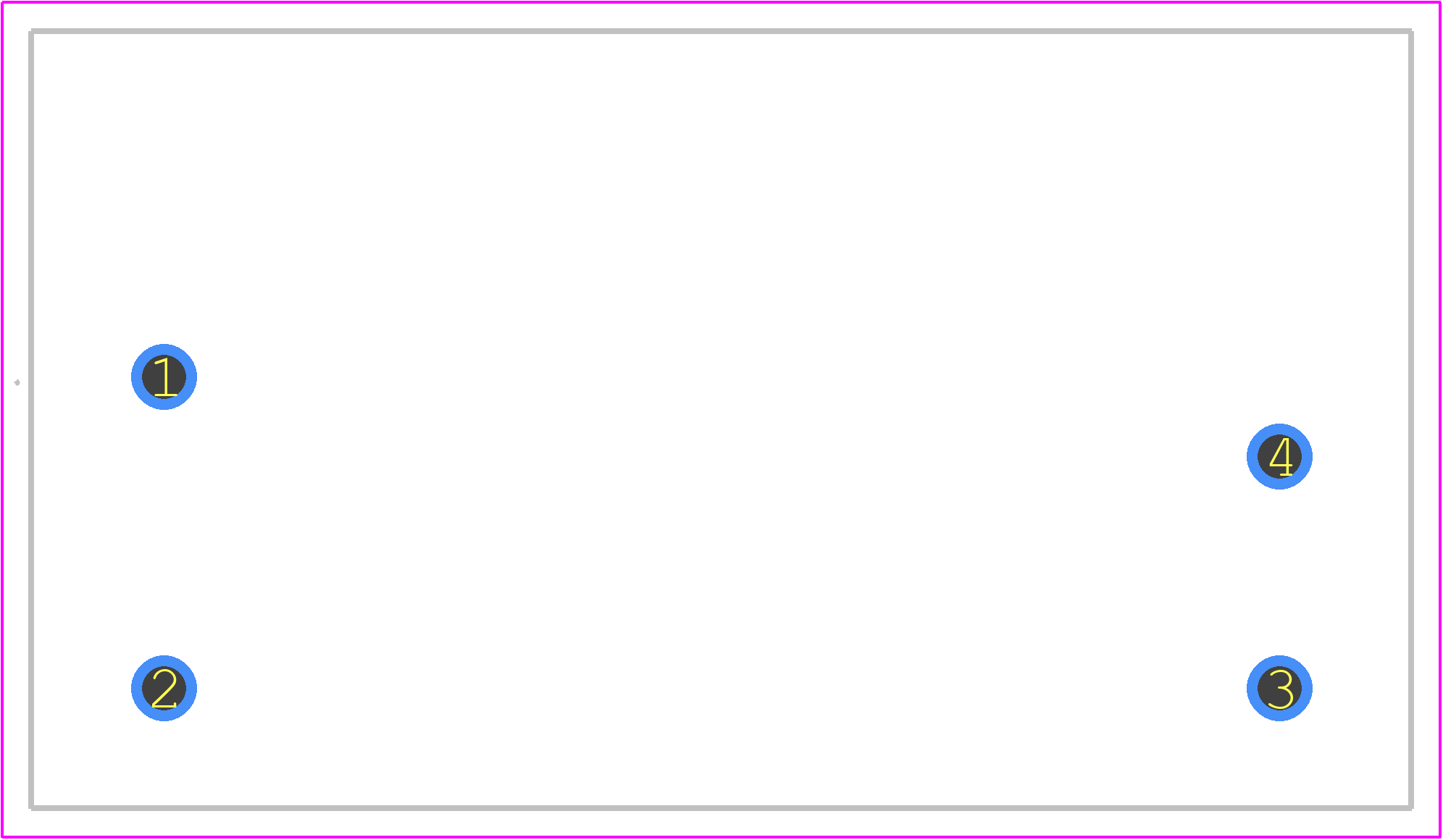

PSK-15D-5 - CUI Inc. PCB footprint - Other - Other - PSK-15D-5-1

click to zoom

3D Models

PSK-15D-5 - CUI Inc. - 3D model - Other - PSK-15D-5-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PSK-15D-5
Part Number PSK-15D-5
Manufacturer CUI Inc.
Pin Count 4
Part Category Power Supply
Package Category Other
Footprint Name Other - PSK-15D-5-1
Released Date May 1, 2021
Last Modified Date Apr 7, 2025 11:56 AM UTC
Pinout / Pin List Click Here (Member Only)

PSK-15D-5 Details

Manufacturer Part Number:
PSK-15D-5
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
ECCN Code:
EAR99
Manufacturer:
CUI Inc
YTEOL:
3
Additional Feature:
ALSO OPERATE WITH 100-430VDC
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, EN, IEC, UL
Efficiency (Main Output):
85%
Input Voltage-Max:
305 V
Input Voltage-Min:
85 V
Input Voltage-Nom:
115 V
JESD-30 Code:
R-PDMA-P4
Length:
47.6 mm
Line Regulation-Max:
0.5%
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
4
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
3 A
Output Voltage-Max:
5.1 V
Output Voltage-Min:
4.9 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Protections:
OVER VOLTAGE, OVER CURRENT, SHORT CIRCUIT
Ripple Voltage (Main Out):
0.04242 Vrms
Seated Height-Max:
24 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
15 W
Trim/Adjustable Output:
NO
Width:
26.8 mm

PSK-15D-5 Frequently Asked Questions (FAQs)

CUI Inc recommends a 4-layer PCB with a solid ground plane on the bottom layer, and a separate layer for the power traces to minimize noise and EMI. A minimum of 2 oz copper thickness is recommended for the power traces.
The PSK-15D-5 has a built-in thermal pad for heat dissipation. Ensure good thermal contact between the pad and a heat sink or a metal chassis. A thermal interface material (TIM) can be used to fill any gaps. Keep the surrounding air temperature below 40°C for optimal performance.
The maximum capacitance recommended is 220uF. Exceeding this value may cause instability or oscillation in the output voltage. It's essential to follow the recommended output capacitance to ensure stable operation.
Yes, the PSK-15D-5 can be used in a redundant or parallel configuration to achieve higher power output or redundancy. However, it's crucial to ensure proper synchronization and current sharing between the units to prevent instability or damage.
CUI Inc recommends a fuse rating of 5A slow-blow or 3A fast-acting to protect the input circuitry from overcurrent conditions. The fuse should be sized according to the specific application's requirements.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

PSK-15D-5 Overview

Use the download button to access the PSK-15D-5 schematic symbol, PCB footprint, and 3D model.
