PSK-6B-S5 - CUI Inc.

Description: AC/DC Power Modules ac-dc 6 W 5 V 1.2A output encapsulated PCB

Download PSK-6B-S5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PSK-6B-S5 - CUI Inc. - PCB symbol
click to zoom
PCB Footprints

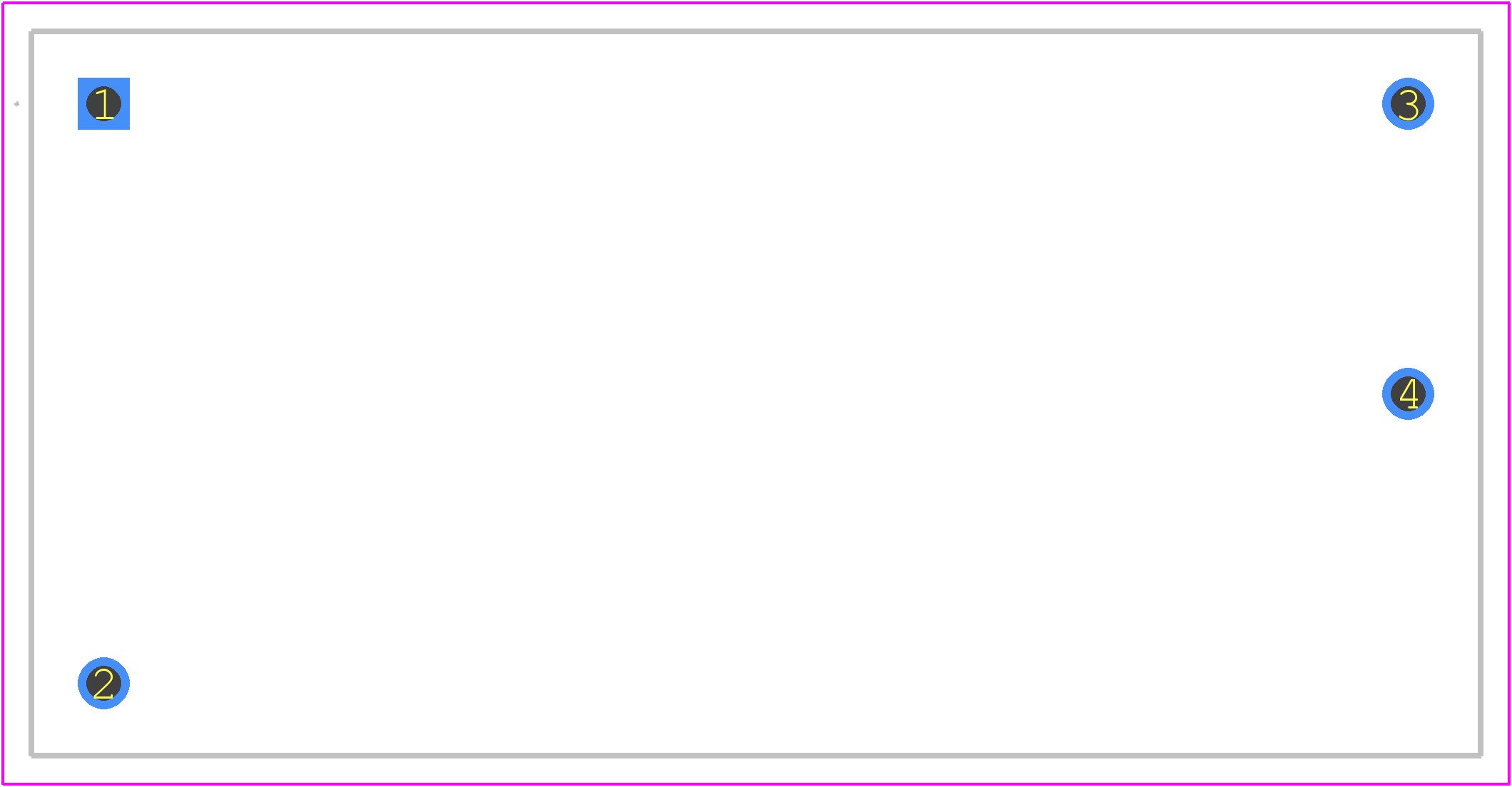

PSK-6B-S5 - CUI Inc. PCB footprint - Other - Other - PSK-6B-S5-3
click to zoom
3D Models
PSK-6B-S5 - CUI Inc. - 3D model - Other - PSK-6B-S5-3
click to zoom

PSK-6B-S5 Details

  • Manufacturer Part Number:

    PSK-6B-S5

  • Brand Name:

    CUI Inc

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • ECCN Code:

    EAR99

  • Manufacturer:

    CUI Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    264 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    115 V

  • JESD-30 Code:

    R-XDMA-P4

  • JESD-609 Code:

    e3

  • Length:

    50.8 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    50 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Voltage-Max:

    5.25 V

  • Output Voltage-Min:

    4.75 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    17.24 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN OVER NICKEL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    6 W

  • Trim/Adjustable Output:

    NO

  • Width:

    25.4 mm

PSK-6B-S5 Frequently Asked Questions (FAQs)

  • A good PCB layout should ensure minimal thermal resistance, use thermal vias, and keep high-current paths short. A heat sink or thermal pad can be used to dissipate heat. Consult CUI's application notes for specific guidance.
  • Follow proper PCB design and layout practices, use shielding, and ensure proper grounding. Additionally, consider using EMI filters or common-mode chokes to minimize emissions and susceptibility.
  • Derating curves can be obtained from CUI Inc. or calculated using the device's thermal resistance and maximum junction temperature. Apply derating by reducing the output power or current based on the ambient temperature and desired reliability.
  • Use a systematic approach: check input voltage, output voltage, and current. Verify proper connections, component values, and PCB layout. Consult CUI's troubleshooting guide or contact their support team for assistance.
  • CUI Inc. provides reliability data and MTBF estimates in their datasheet or upon request. Consider factors like operating conditions, temperature, and quality of the device when estimating reliability.
