OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; SHORT CIRCUIT
Ripple Voltage (Main Out):
0.04242 Vrms
Seated Height-Max:
24 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
10
Total Power Output-Max:
15 W
Trim/Adjustable Output:
NO
Width:
28.8 mm
PSK-S15C-24 Frequently Asked Questions (FAQs)
CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended. Additionally, ensure good airflow around the device and consider using a heat sink if operating in high-temperature environments.
To ensure reliable startup and shutdown, CUI recommends a soft-start circuit to limit inrush current. Additionally, ensure that the input voltage rises and falls slowly (typically 10-20 ms) to prevent voltage spikes and ensure proper startup and shutdown sequencing.
CUI provides derating curves for temperature and altitude in the datasheet. However, if you need more detailed information, contact CUI's technical support for customized derating curves based on your specific application requirements.
Yes, the PSK-S15C-24 can be used in redundant or parallel configurations. However, CUI recommends consulting with their technical support team to ensure proper implementation and to discuss any specific requirements or limitations.
The PSK-S15C-24 meets various EMI and EMC compliance certifications, including UL, cUL, and CE. For specific certification details, refer to the datasheet or contact CUI's technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PSK-S15C-24 Overview

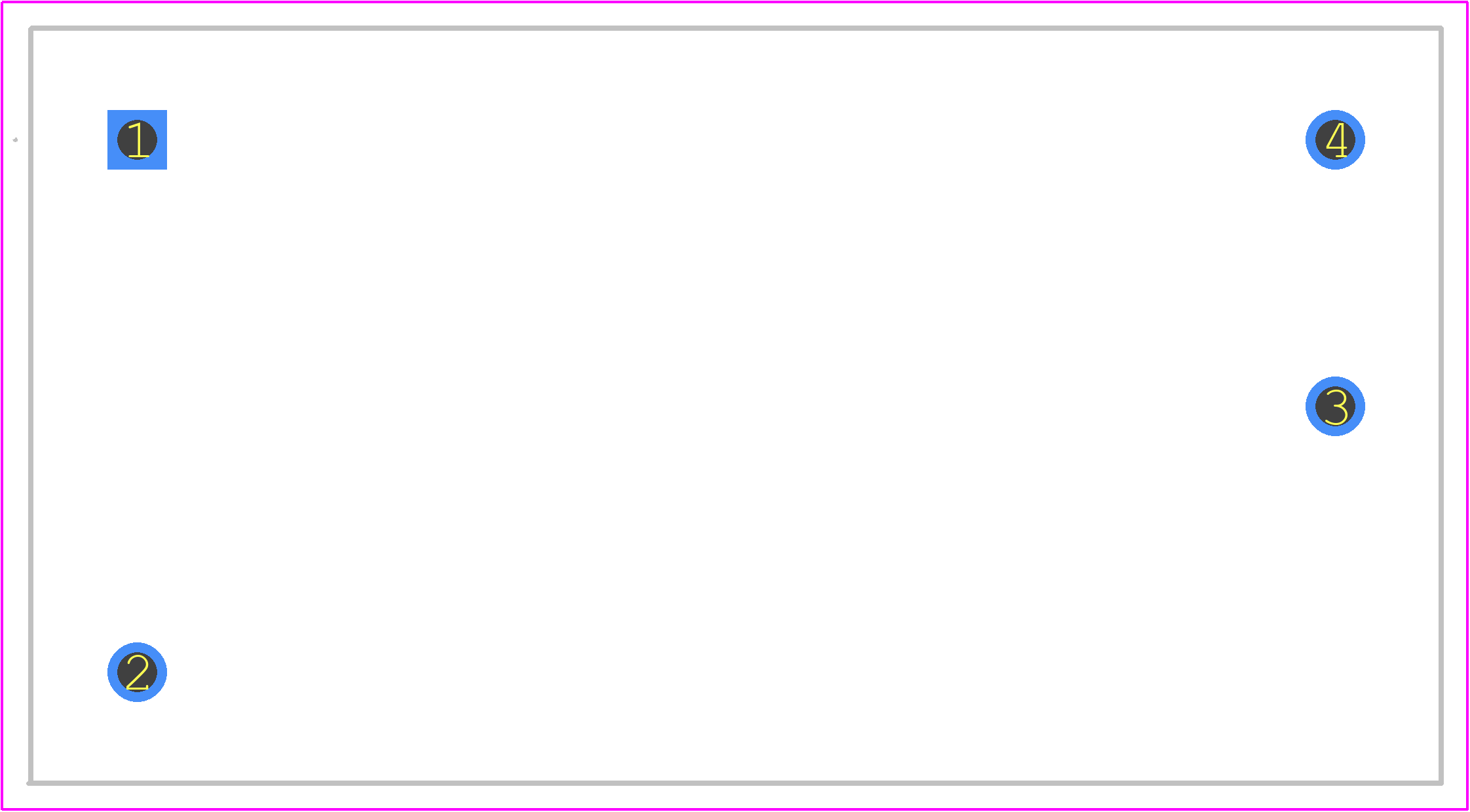

Use the download button to access the PSK-S15C-24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PSK-S,
or try a keyword search, such as Power Supply Modules
