The recommended PCB footprint for PSMN1R5-25MLHX is a standard SOT223 package with a minimum pad size of 1.5 mm x 2.5 mm and a thermal pad size of 2.5 mm x 2.5 mm.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermal interface material, and keeping the device within its specified operating temperature range (up to 150°C).
The maximum allowed voltage on the gate of PSMN1R5-25MLHX is ±20V, with a recommended maximum voltage of ±15V to ensure reliable operation and prevent damage to the device.
Yes, PSMN1R5-25MLHX is suitable for switching applications due to its low RDS(on) and high switching speed. However, it's essential to follow proper switching design guidelines and ensure that the device is operated within its specified ratings and limitations.
To handle ESD protection for PSMN1R5-25MLHX, follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and ensure that the device is stored in an ESD-protected environment. Additionally, consider adding external ESD protection components, such as TVS diodes, to the circuit design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PSMN1R5-25MLHX Overview

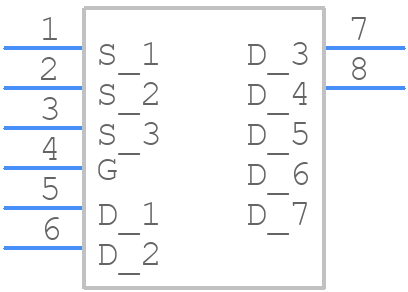

Use the download button to access the PSMN1R5-25MLHX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PSMN1,
or try a keyword search, such as Power Field-Effect Transistors
About Nexperia
Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
