PSMN4R2-40VSHX - Nexperia

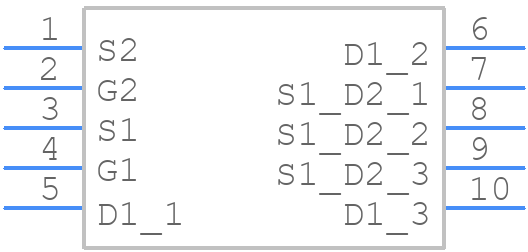

PSMN4R2-40VSHX Details

• Manufacturer Part Number:

  PSMN4R2-40VSHX

• Brand Name:

  Nexperia

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOT1205, LFPAK56D, 4 PIN

• Pin Count:

  8

• Manufacturer Package Code:

  SOT1205

• ECCN Code:

  EAR99

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  Nexperia

• YTEOL:

  5.6

• Additional Feature:

  AVALANCHE RATED

• Avalanche Energy Rating (Eas):

  42.3 mJ

• Case Connection:

  DRAIN SOURCE

• Configuration:

  SERIES CONNECTED, CENTER TAP, 2 ELEMENTS WITH BUILT-IN DIODE

• DS Breakdown Voltage-Min:

  40 V

• Drain Current-Max (ID):

  98 A

• Drain-source On Resistance-Max:

  0.0042 Ω

• FET Technology:

  METAL-OXIDE SEMICONDUCTOR

• Feedback Cap-Max (Crss):

  200 pF

• JESD-30 Code:

  R-PSSO-G4

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Number of Elements:

  2

• Number of Terminals:

  4

• Operating Mode:

  ENHANCEMENT MODE

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Polarity/Channel Type:

  N-CHANNEL

• Power Dissipation-Max (Abs):

  85 W

• Pulsed Drain Current-Max (IDM):

  393 A

• Reference Standard:

  IEC-60134

• Surface Mount:

  YES

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  30

• Transistor Application:

  SWITCHING

• Transistor Element Material:

  SILICON
