The recommended operating voltage range for PSMUX154ZMEX is 1.71V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate voltage transients up to 6.5V without damage.
To ensure signal integrity, it's crucial to follow proper PCB design and layout guidelines, such as using controlled impedance traces, minimizing signal routing distances, and providing adequate power supply decoupling. Additionally, consider using series termination resistors and/or AC coupling capacitors to reduce signal reflections and ringing.
The PSMUX154ZMEX can support data rates up to 4Gbps, making it suitable for high-speed applications such as USB 3.2 Gen 2, SATA III, and PCIe Gen 3.
To ensure proper power sequencing, it's recommended to power up the VCC pin before applying any input signals. Additionally, consider using a power sequencing controller or a dedicated power management IC to manage the power-up and power-down sequences of the various power domains in your system.
The typical power consumption of PSMUX154ZMEX is around 150μA at 3.3V supply voltage, making it a low-power solution for high-speed signal switching applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PSMUX154ZMEX Overview

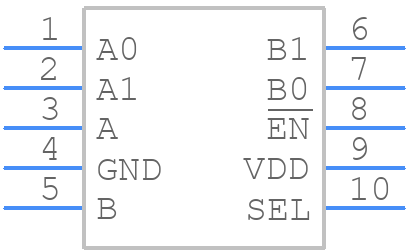

Use the download button to access the PSMUX154ZMEX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PSMUX,
or try a keyword search, such as Power Management Circuits
