PSR100KTQFJ2L00 - ROHM Semiconductor

Description: 6432 (2512) size, 6W, 2mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)

Download PSR100KTQFJ2L00 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PSR100KTQFJ2L00 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints

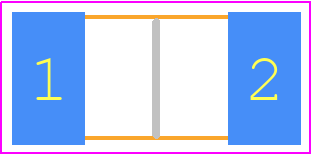

PSR100KTQFJ2L00 - ROHM Semiconductor PCB footprint - Resistor Chip - Resistor Chip - 2512 (6432 Metric)
click to zoom
3D Models
PSR100KTQFJ2L00 - ROHM Semiconductor - 3D model - Resistor Chip - 2512 (6432 Metric)
click to zoom

PSR100KTQFJ2L00 Details

  • Manufacturer Part Number:

    PSR100KTQFJ2L00

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    10

  • Construction:

    Rectangular

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Height:

    1 mm

  • Package Length:

    6.35 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.05 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Power Dissipation (P):

    6 W

  • Rated Temperature:

    75 °C

  • Reference Standard:

    AEC-Q200; IATF 16949

  • Resistance:

    0.002 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    METAL PLATE

  • Temperature Coefficient:

    0,50 ppm/°C

  • Terminal Shape:

    GULL WING

  • Tolerance:

    1%

  • Working Voltage:

    0.1095 V

PSR100KTQFJ2L00 Frequently Asked Questions (FAQs)

  • The recommended land pattern for the PSR100KTQFJ2L00 can be found in the ROHM Semiconductor's packaging specification document or by contacting their technical support team.
  • The PSR100KTQFJ2L00 has a thermal resistance of 25°C/W. To handle thermal management, ensure good airflow, use a heat sink if necessary, and follow proper PCB design guidelines for thermal dissipation.
  • The maximum operating temperature range for the PSR100KTQFJ2L00 is -40°C to 150°C, as specified in the datasheet.
  • The PSR100KTQFJ2L00 is a surface-mount device and can be used in high-vibration environments, but ensure proper PCB design and mounting to prevent mechanical stress and damage.
  • To ensure reliability in a humid environment, follow proper PCB design guidelines, use a conformal coating, and consider using a moisture-resistant package or coating for the PSR100KTQFJ2L00.
