A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended for optimal thermal performance. The thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it is recommended to derate the power dissipation according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow and thermal management around the device.
Handle the device by the body, avoiding touching the pins or leads. Store the device in a dry, cool place, away from direct sunlight and moisture. Avoid bending or flexing the leads, and do not stack devices on top of each other.
Check the device's operating conditions, such as voltage, current, and temperature, to ensure they are within the recommended specifications. Verify the PCB layout and thermal management are adequate. If issues persist, consult the datasheet or contact Mitsubishi Electric's technical support.
Yes, follow the recommended soldering profile and temperature guidelines to prevent damage to the device. Use a soldering iron with a temperature range of 350°C to 370°C, and avoid applying excessive force or pressure during rework.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PSS05S92F6-AG Overview

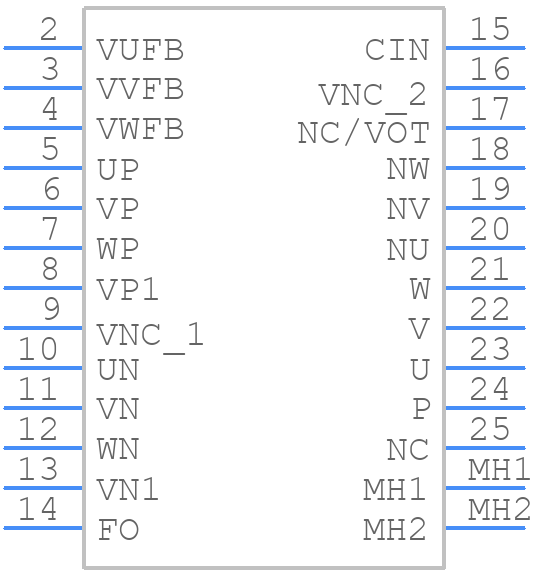

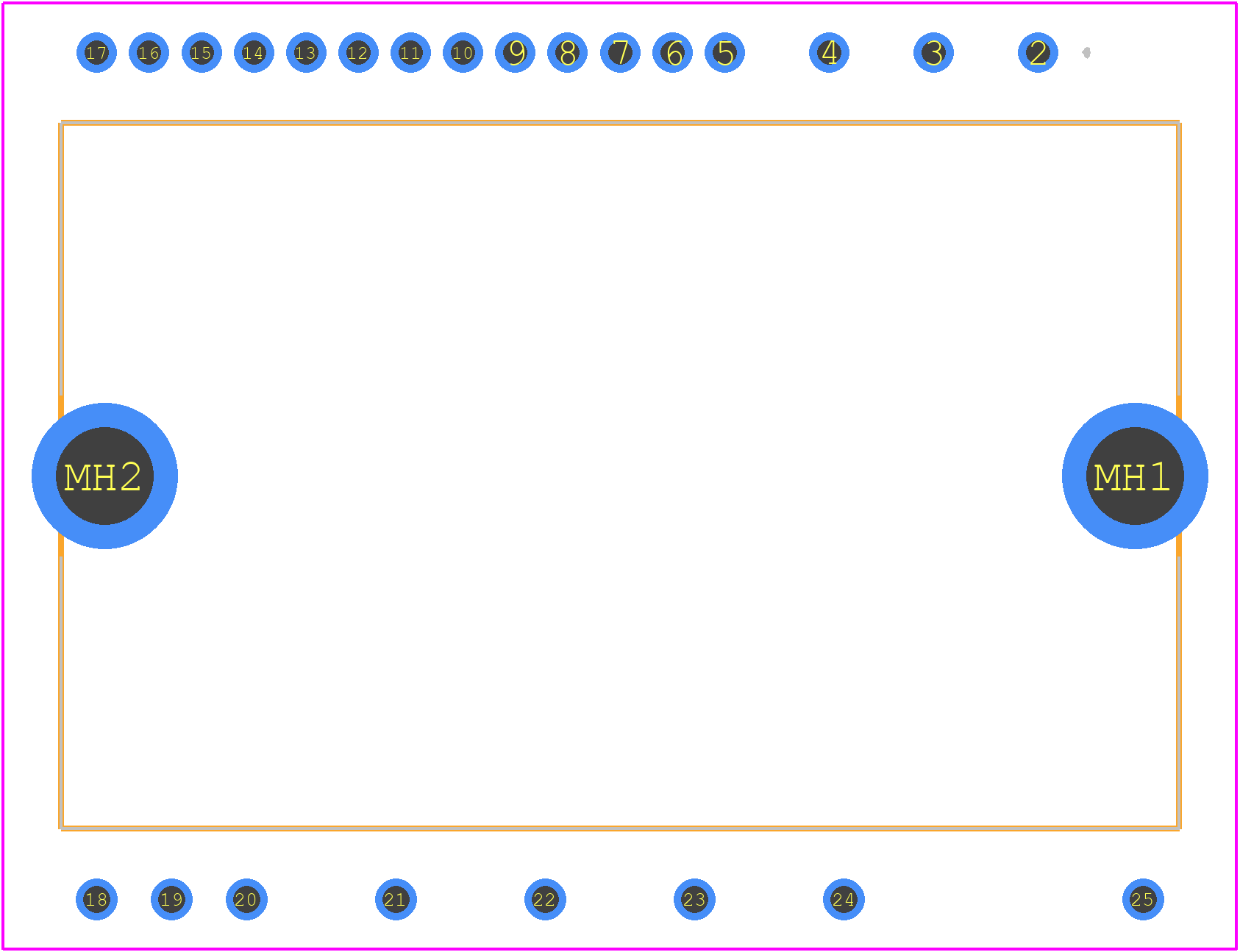

Use the download button to access the PSS05S92F6-AG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PSS05,
or try a keyword search, such as Motion Control Electronics
