Description:IGBT Modules Large DIPIPM Version 6 6-PAC ,1200V / 5A,Voltage: 900 V, 1000 V, 1200 V Current: 5 A, 10 A Power: 44.6 W Temperature: -30 to +150 °C
Mitsubishi Electric recommends a 4-layer PCB with a thermal relief pattern on the bottom layer to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended for the power traces. Additionally, a thermal pad or heat sink is recommended to be attached to the top of the module to further improve thermal performance.
To ensure reliable operation in high-temperature environments, it is recommended to derate the output power of the module according to the temperature derating curve provided in the datasheet. Additionally, proper thermal management, such as using a heat sink or thermal pad, and ensuring good airflow around the module can help to reduce the operating temperature.
Mitsubishi Electric recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output filters. The capacitors should be rated for the maximum operating voltage and temperature of the application. Additionally, the capacitors should be placed as close as possible to the module's input and output pins to minimize noise and ripple.
To troubleshoot common issues, refer to the module's datasheet and application notes for guidance on troubleshooting and fault detection. Additionally, Mitsubishi Electric provides a troubleshooting guide that outlines common issues and their solutions. It is also recommended to use an oscilloscope to monitor the input and output waveforms to identify any anomalies.
When handling and storing the PSS05SA2FT module, it is recommended to follow proper electrostatic discharge (ESD) precautions to prevent damage to the module. The module should be stored in a dry, cool place away from direct sunlight and moisture. Additionally, the module should be handled by trained personnel who are familiar with the safety precautions and handling procedures outlined in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PSS05SA2FT Overview

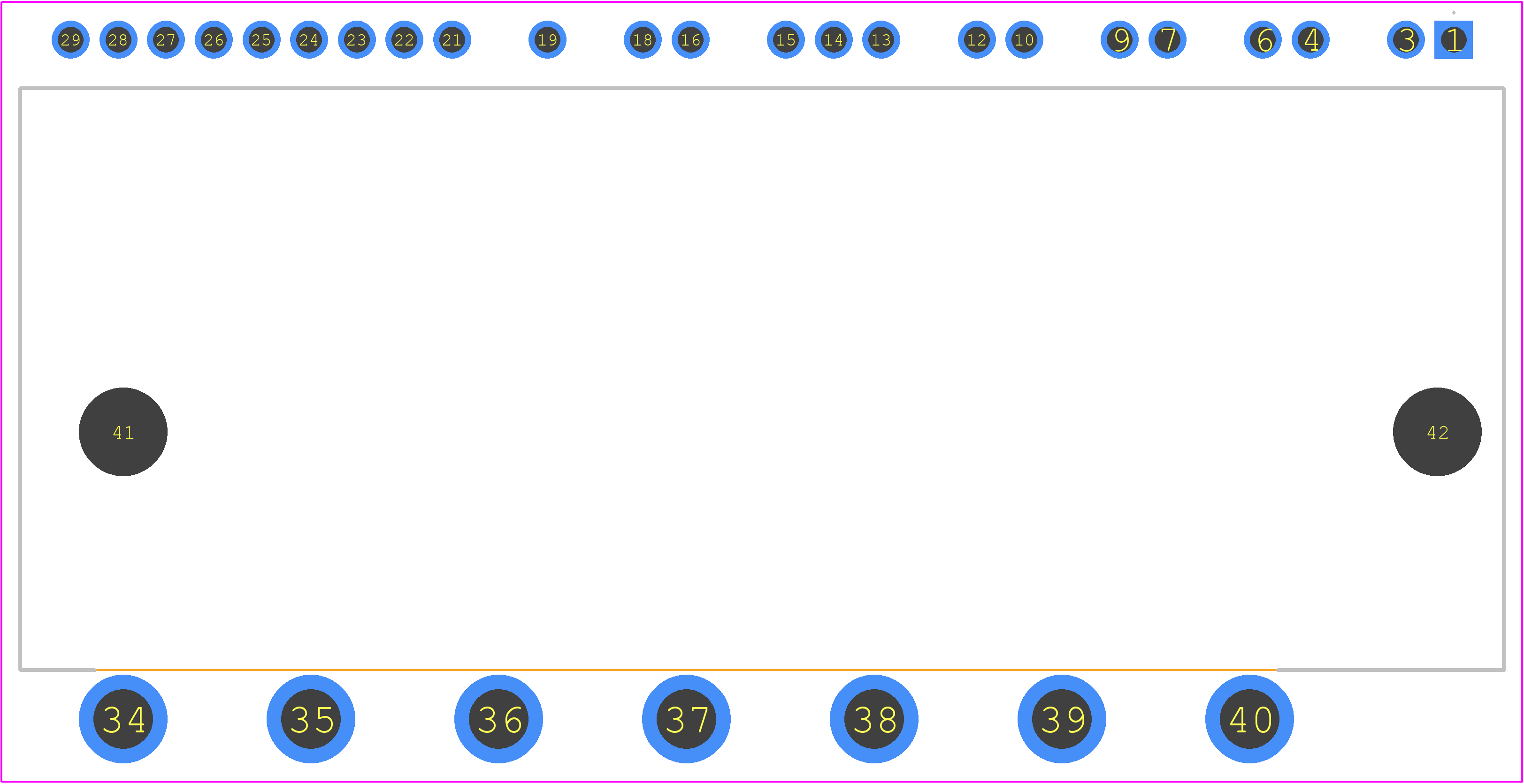

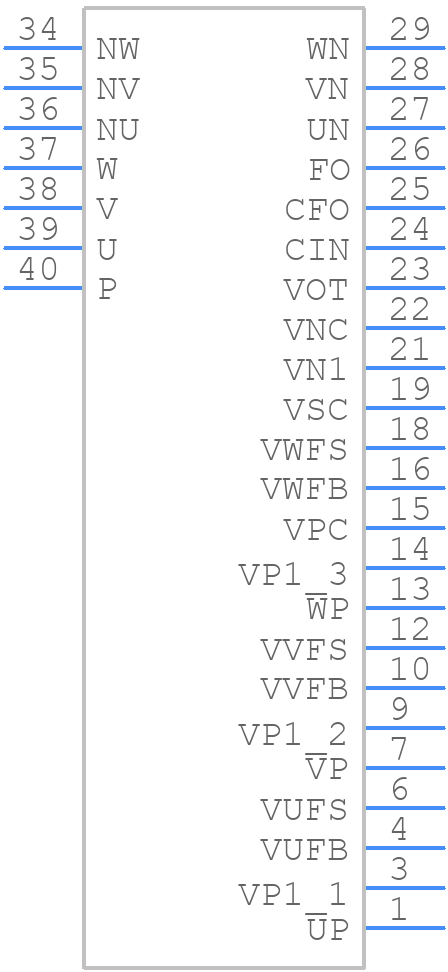

Use the download button to access the PSS05SA2FT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PSS05,
or try a keyword search, such as Motion Control Electronics
