PSS10S92F6-AG - Mitsubishi

Description: Trander molding type, insualted type, IPM, IGBT, 10A, 1.5KV, DIP

Download PSS10S92F6-AG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

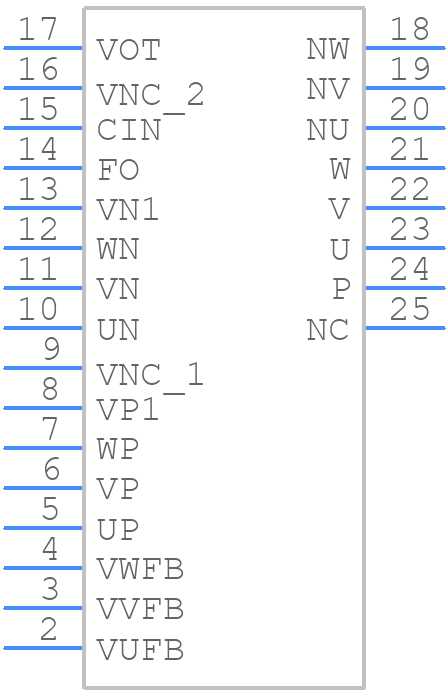

Symbol
PSS10S92F6-AG - Mitsubishi - PCB symbol
click to zoom

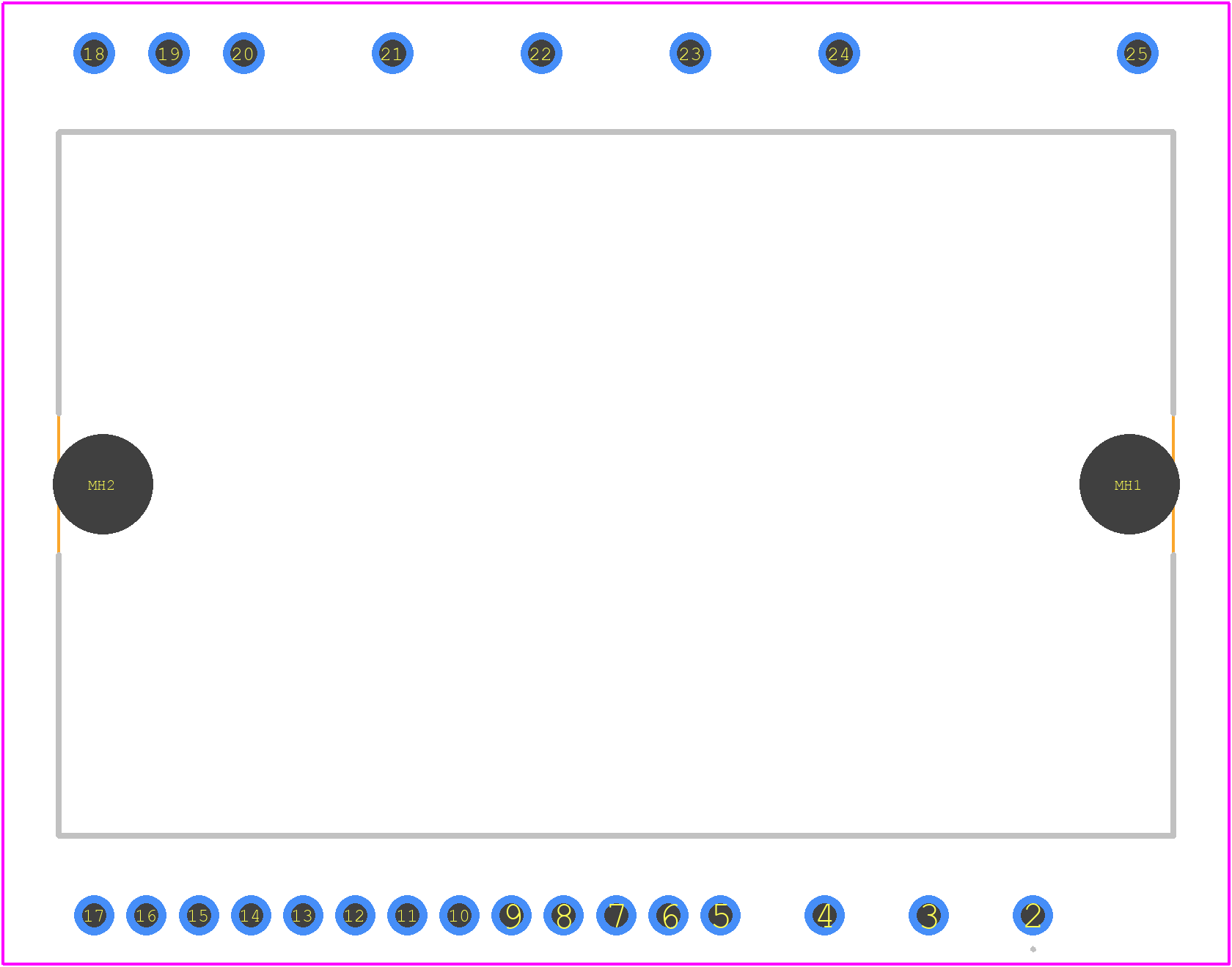

PCB Footprints
PSS10S92F6-AG - Mitsubishi PCB footprint - Other - Other - PSS10S92F6-AG-4
click to zoom
3D Models
PSS10S92F6-AG - Mitsubishi - 3D model - Other - PSS10S92F6-AG-4
click to zoom

PSS10S92F6-AG Details

  • Manufacturer Part Number:

    PSS10S92F6-AG

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Mitsubishi Electric

  • YTEOL:

    9

  • Analog IC - Other Type:

    INTELLIGENT POWER MODULE(IPM)

  • JESD-30 Code:

    R-XDMA-T26

  • Length:

    38 mm

  • Number of Functions:

    1

  • Number of Terminals:

    26

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Current-Max:

    15 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Packing Method:

    TUBE

  • Seated Height-Max:

    6 mm

  • Supply Current-Max (Isup):

    2.8 mA

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    UNSPECIFIED

  • Width:

    24 mm

PSS10S92F6-AG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended for optimal thermal performance. The thermal pad should be connected to the ground plane through multiple vias.
  • Ensure proper heat sinking, use a thermal interface material, and follow the recommended PCB layout. Also, consider derating the device's power dissipation according to the ambient temperature.
  • The maximum allowable voltage on the gate pin is ±20V, but it's recommended to keep it within ±15V to ensure reliable operation and prevent damage to the device.
  • Yes, the PSS10S92F6-AG is suitable for switching applications. However, ensure that the switching frequency is within the recommended range, and consider the device's switching losses and thermal performance.
  • Use a suitable overvoltage protection circuit, such as a TVS diode or a zener diode, and consider adding a current-sensing resistor to detect overcurrent conditions.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PSS10S92F6-AG Overview

Use the download button to access the PSS10S92F6-AG schematic symbol, PCB footprint, and 3D model.
